| Thread Specification | 1/4-28UNF female thread, M12×1 male thread |
|---|---|
| Compatible Fitting | Standard 1/4-28UNF flat-bottom thread fitting (pitch: 0.907mm) |

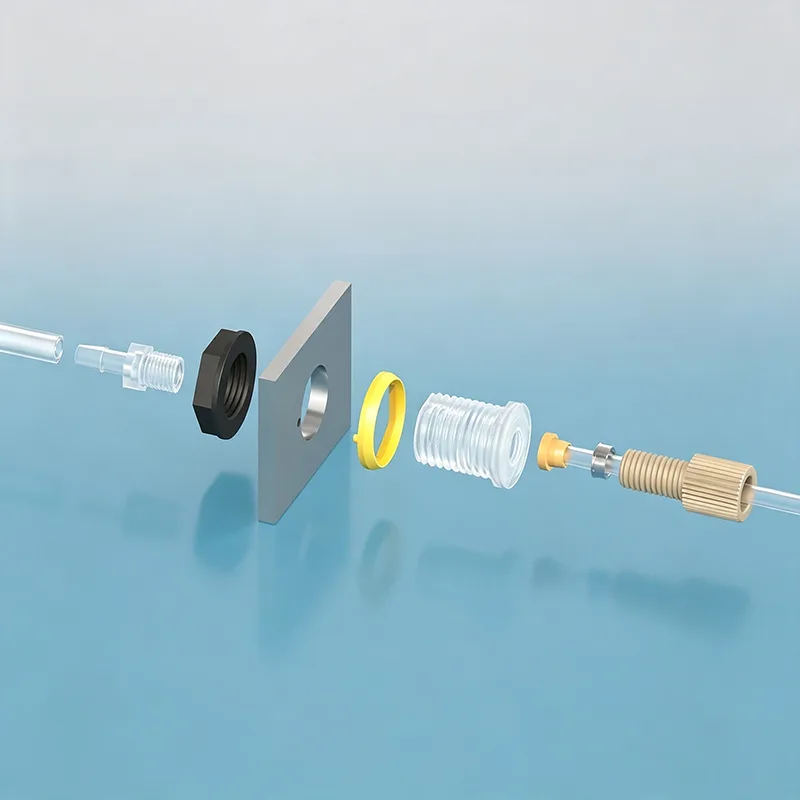

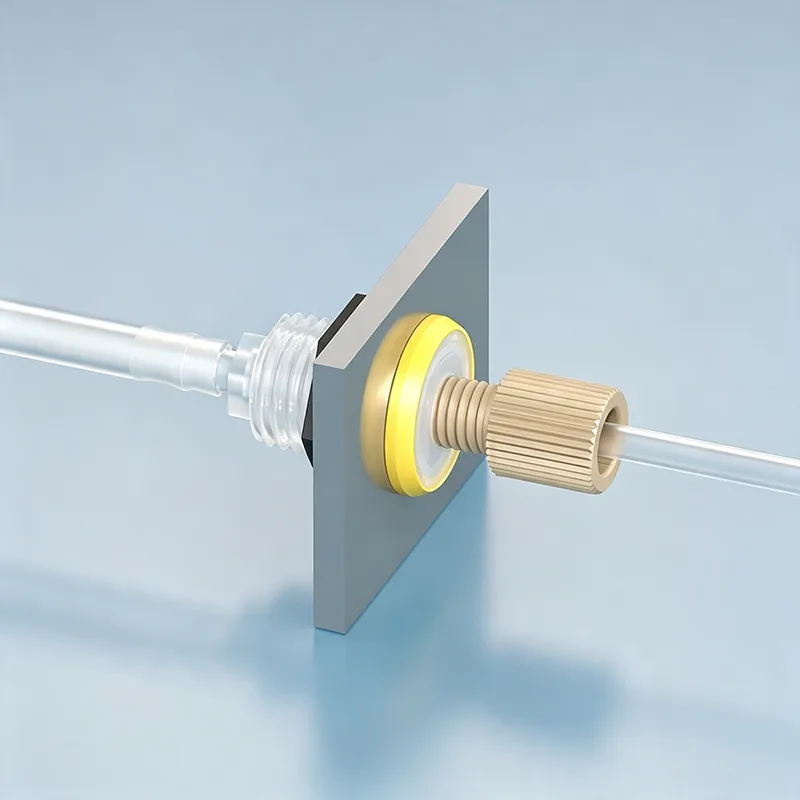

| Features | With anti-rotation cover to lock the fitting and prevent rotation; designed to pass through the equipment housing and connect internal tubing to the outside (panel must be pre-drilled); male-female thread conversion for leak-free connection with rigid/soft tubing systems |

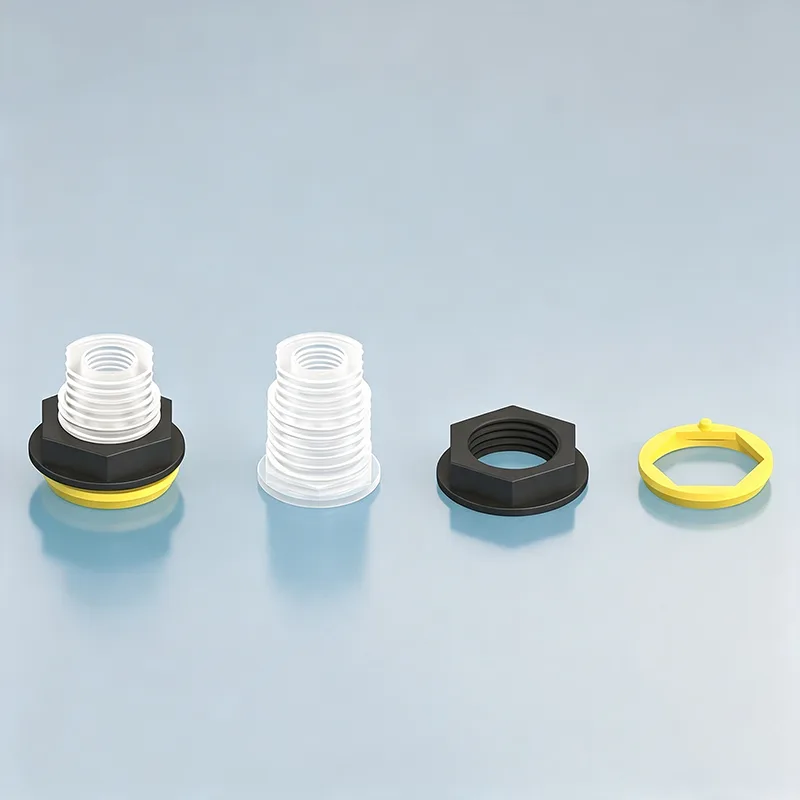

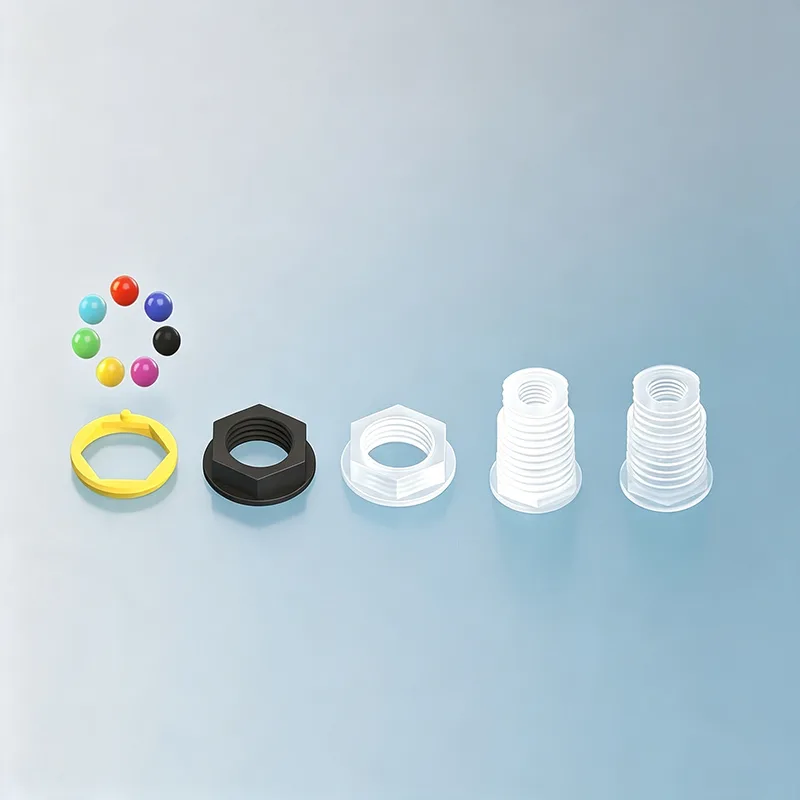

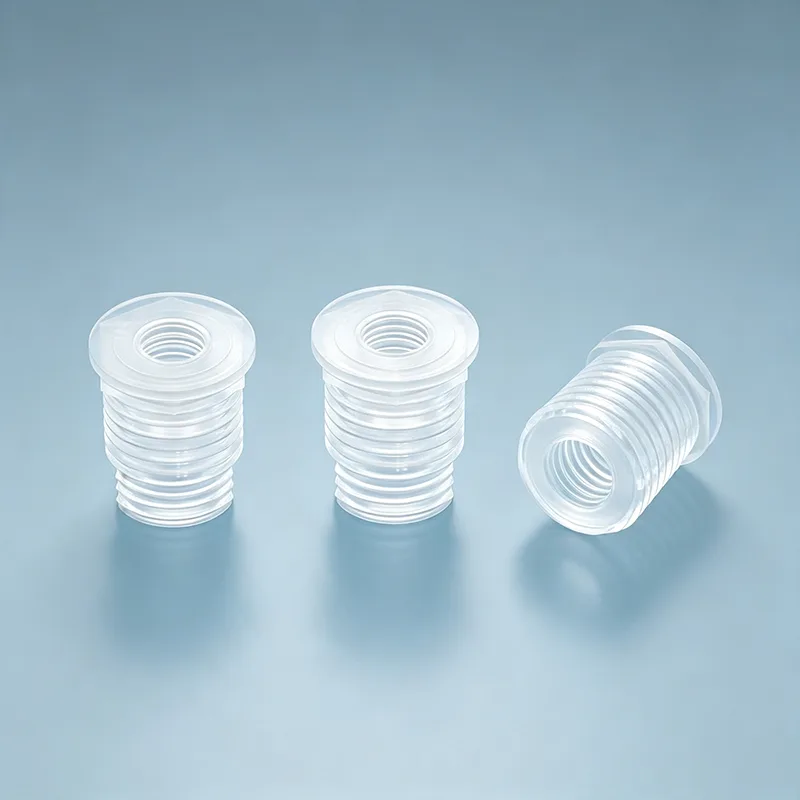

| Material | Fitting optional in PP, PTFE — non-toxic, odorless, heat resistant, resistant to chemicals and organic solvents; matching fine-thread thin nut optional in PPS, PTFE; anti-rotation cover in PP |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |
FTG-BH-AR-3P ialah Bulkhead Anti-Pusing (3-Bahagian). Penutup anti-pusing mengunci fitting untuk menembus perumah peranti.
Spesifikasi benang: 1/4-28UNF female thread, M12×1 male thread Tiub serasi: Standard 1/4-28UNF flat-bottom thread fitting
Apakah standard benang yang disokong?
Kebanyakan fitting menggunakan 1/4-28UNF; sesetengah menambah M6, M8, M10, 10-32UNF atau 6-40UNF. Semak jadual spec setiap model sebelum memesan.
Bolehkah saya sambung saiz tiub berbeza?
Ya. Gunakan fitting pengurangan atau penyesuai seperti hard-soft tube adapter dan multi-port untuk menyambung diameter berbeza.
Adakah fitting ini tahan kimia?
Ya — badan PP, PTFE, PEEK dan PPS tahan pelarut biasa; sahkan keserasian media untuk model anda.
Adakah alat pemasangan disediakan?
Ya. Kit alat torque hand-tightening dan pemotong tiub PEEK/PTFE tersedia sebagai aksesori untuk sealing yang boleh dipercayai.
