| Thread Specification | 1/4-28UNF (pitch: 0.907mm), M6 (pitch: 1mm) |
|---|---|
| Compatible Tubing | For rigid tubing 1.6/2.0/2.5/3.0/3.2mm OD |
| Pre-tightening Inverted Cone Principle | In a threaded connection, a pre-load is applied before the working load to enhance reliability and tightness, preventing gaps or relative slippage between connected parts after loading |
| Features | Chemical resistance to organic solvents and various chemicals; plug available in PP, PTFE; ferrule optional in PP, PFA |
| Operating Environment | 0.11~0.15 N·m at room temperature, rigid tubing wall thickness ≤0.5mm; 0.15~0.20 N·m at room temperature, wall thickness >0.5mm; 0.20~0.25 N·m at service temperature >100°C or pressure >8 kgf/cm² |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

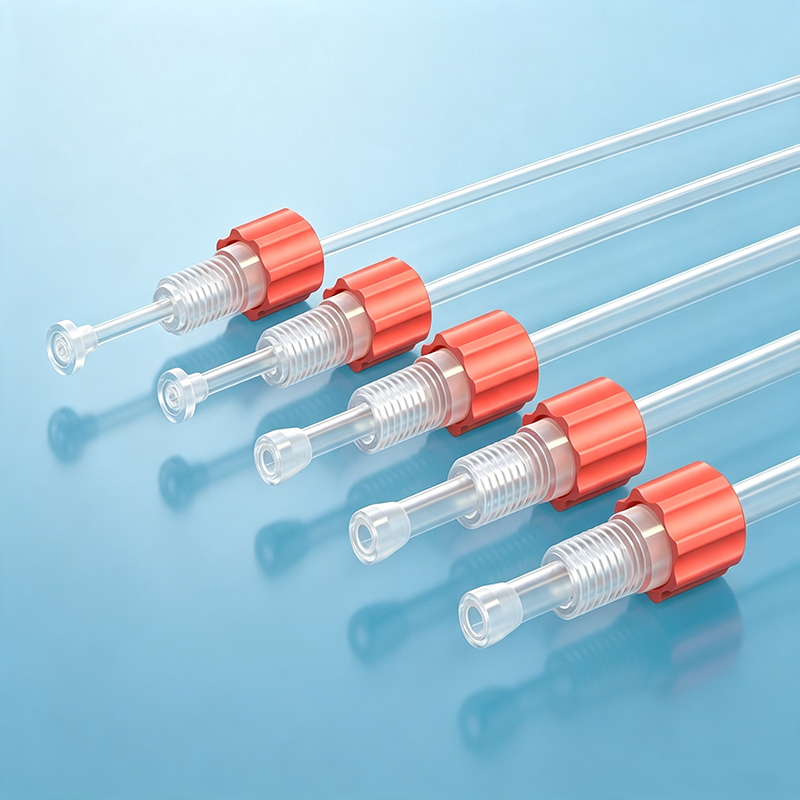

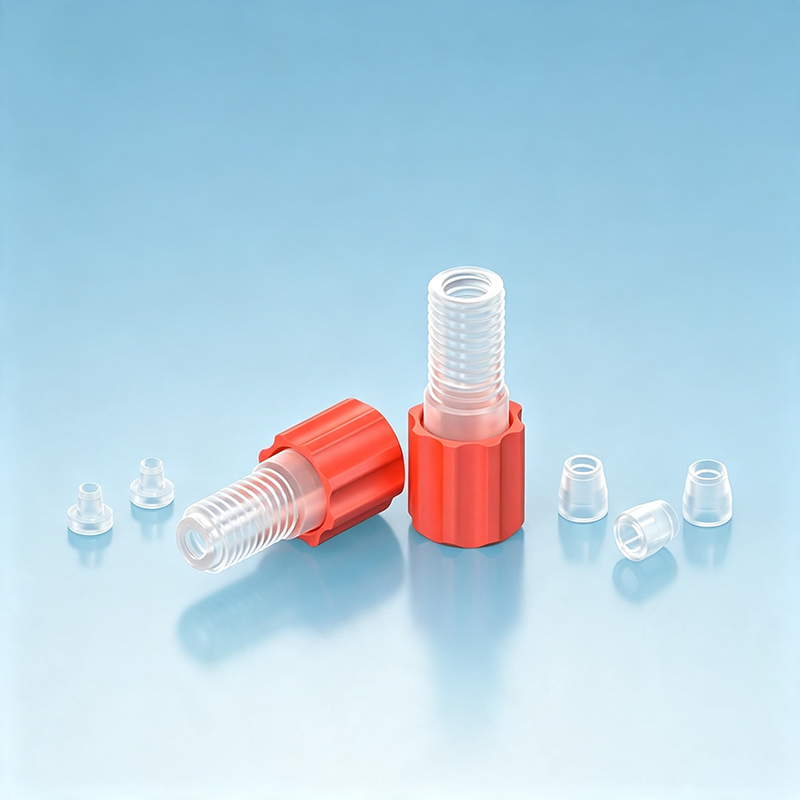

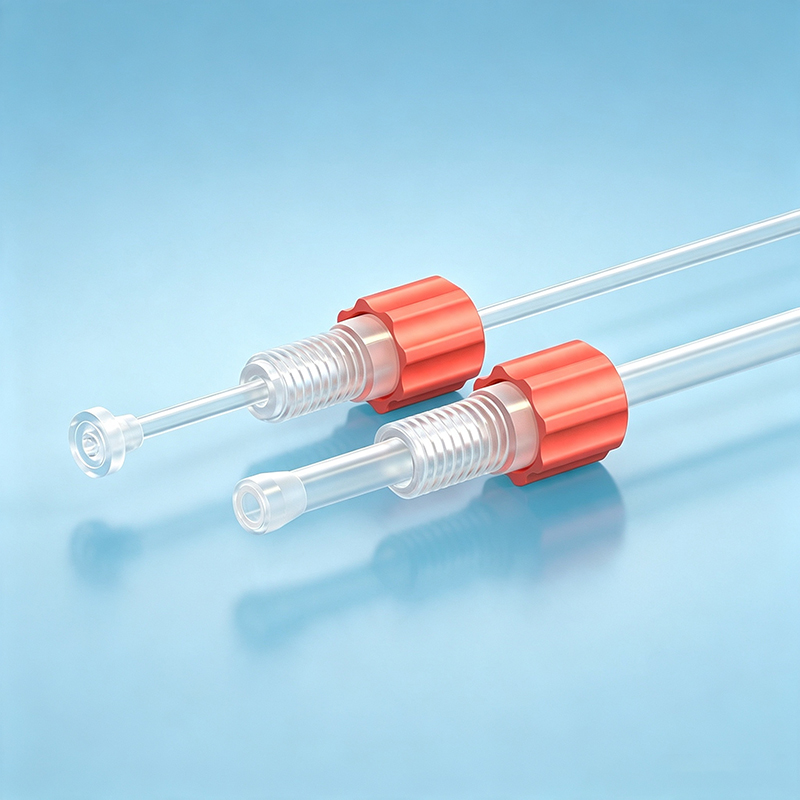

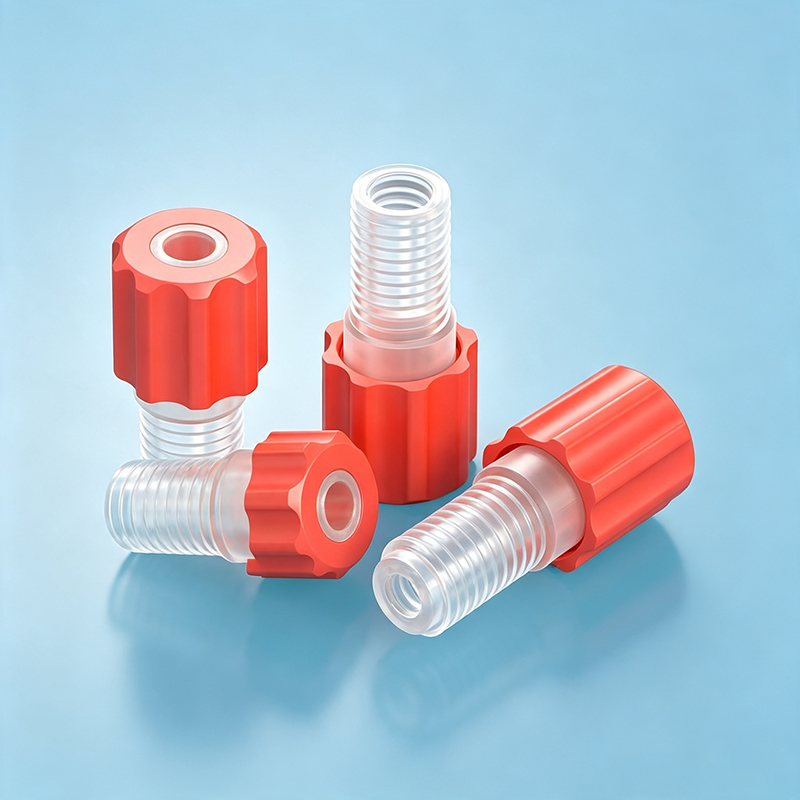

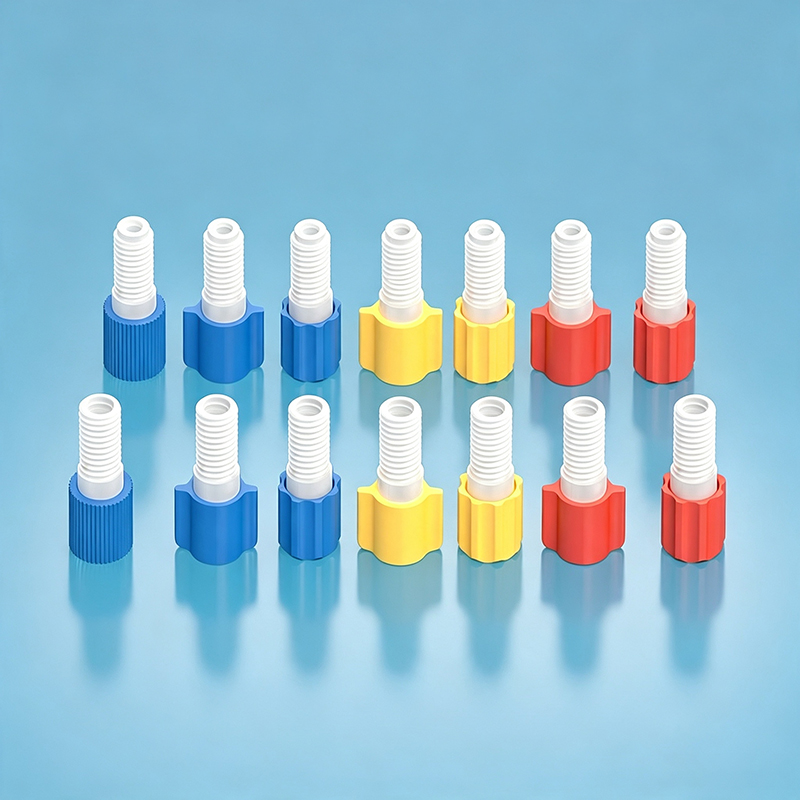

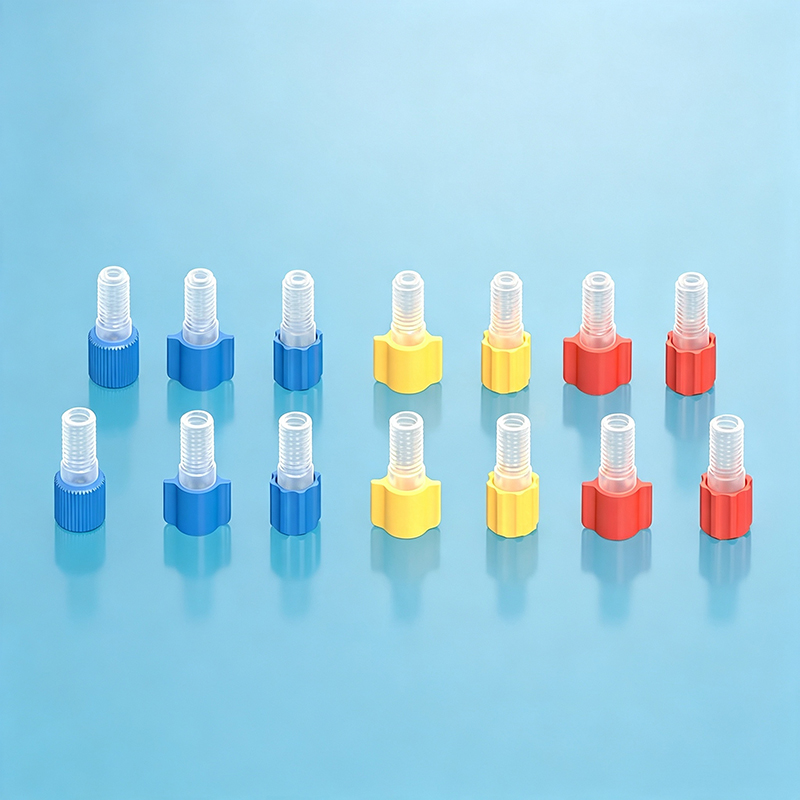

FTG-IC-2P adalah Fitting Inverted Cone Pramuat. Menerapkan pramuat sebelum beban kerja untuk meningkatkan keandalan segel dan mencegah selip.
Spesifikasi ulir: 1/4-28UNF (pitch: 0.907mm), M6 (pitch: 1mm) Tubing yang kompatibel: For rigid tubing 1.6/2.0/2.5/3.0/3.2mm OD
Standar ulir apa yang didukung?
Sebagian besar fitting menggunakan 1/4-28UNF; sebagian menambah M6, M8, M10, 10-32UNF atau 6-40UNF. Periksa tabel spec per model sebelum memesan.
Dapatkah saya menyambung ukuran tubing berbeda?
Ya. Gunakan fitting reduksi atau adapter seperti hard-soft tube adapter dan multi-port untuk menyambung diameter berbeda.
Apakah fitting ini tahan kimia?
Ya — body PP, PTFE, PEEK dan PPS tahan pelarut umum; verifikasi kompatibilitas media untuk model Anda.
Apakah alat instalasi tersedia?
Ya. Kit alat torque hand-tightening dan pemotong tube PEEK/PTFE tersedia sebagai aksesori untuk sealing yang andal.
