| Main Working Modes | [Calibration][Continuous][Quantitative][Scheduled] |
|---|---|
| Control Method | Keypad control / communication control (RS232/RS485) / foot pedal control / analog control |
| Compatible Pump Head | SN15/FG16/YZ series |
| Compatible Pump Tubing | 14#, 19#, 16#, 25#, 17#, 18#, 15#, 24# |
| Speed Range / Max Reference Flow | 1 rpm ~ 500 rpm |
| Speed Accuracy | ±1 rpm |
| Power Supply | DC48V±10% |
| Power Consumption | 144W |
| Operating Temperature | 0~40℃ |
| Operating Humidity | <80% |
| Protection Rating | IP31 |
| Weight | 13 kg (excluding pump head) |
| Industries Served | Food processing, pharmaceuticals, chemical and laboratory research, agriculture and water treatment. Specific applications include: dispensing, sampling, metering, filtration, fermentation. If it is fluid, a peristaltic pump can pump it. In many cases, peristaltic pumps are the ideal choice for pumping abrasive or corrosive fluids. |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

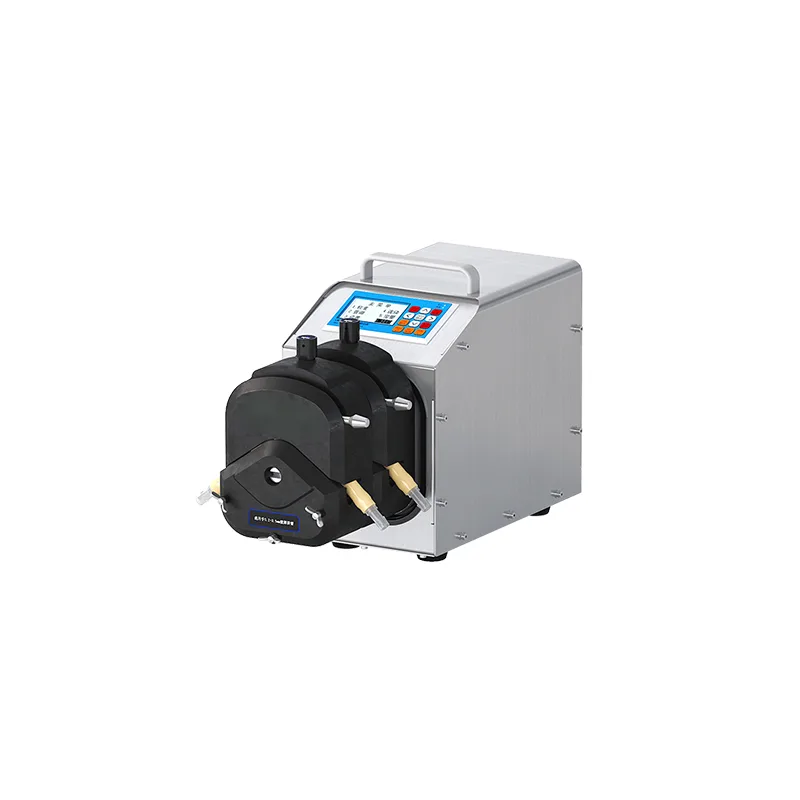

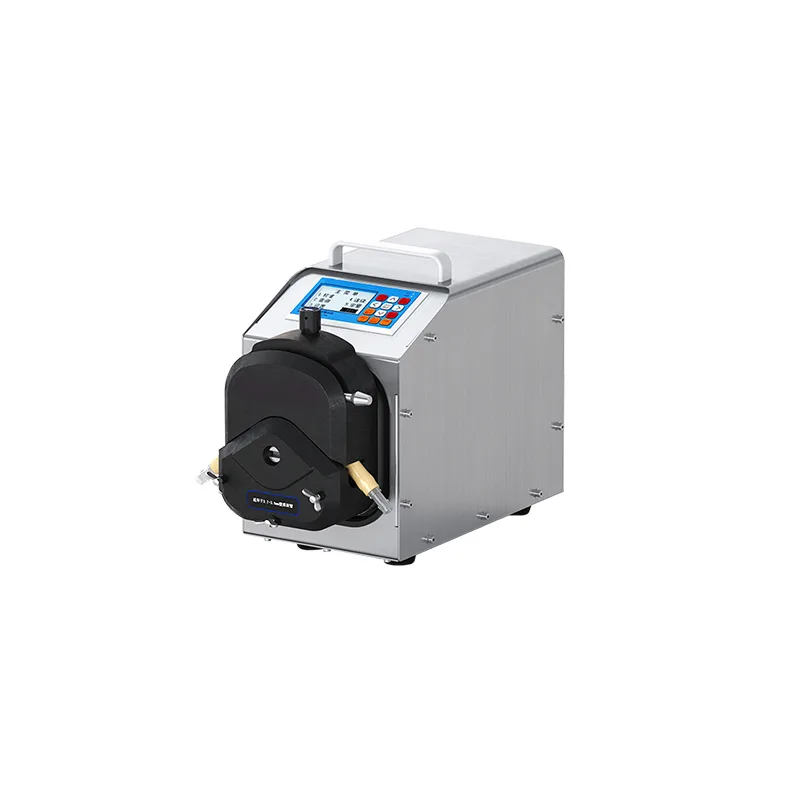

LM80C ialah pam peristaltik pintar laju tinggi untuk pemindahan pukal dalam julat 6-10 L/min. Mod Kalibrasi, Berterusan, Kuantitatif dan Terjadual membolehkan fermenter, loji rawatan air sisa dan barisan makanan menjalankan pemberian dan dosis isi padu besar secara berprogram dan bukannya kawalan manual.
Menggerakkan kepala SN15, FG16 dan siri YZ serta menerima tiub 14#, 19#, 16#, 25#, 17#, 18#, 15# dan 24#. Kelajuan 1 rpm hingga 500 rpm dengan ketepatan dalam ±1 rpm. Kuasa DC48V±10% pada 144 W, IP31, berat 13 kg tanpa kepala pam.
Berapa kadar alir LM80C?
Direka untuk julat 6-10 L/min; aliran sebenar bergantung kepada kepala pam, tiub dan bendalir, dengan kelajuan 1 rpm hingga 500 rpm.

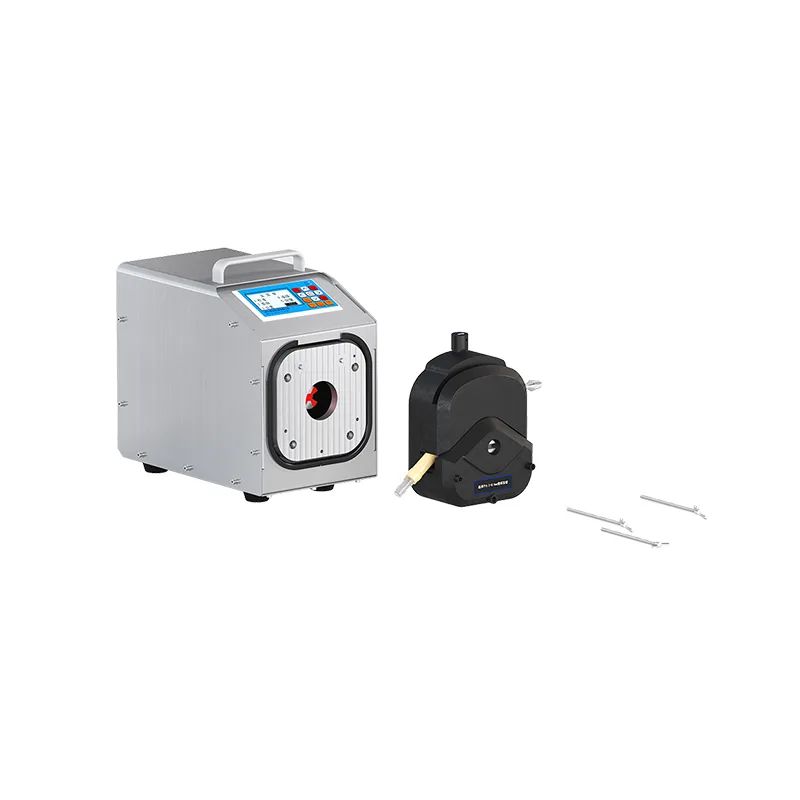

Kepala pam dan tiub apa yang sesuai?
Menggerakkan kepala SN15, FG16 dan siri YZ serta menerima tiub 14#, 19#, 16#, 25#, 17#, 18#, 15# dan 24#.

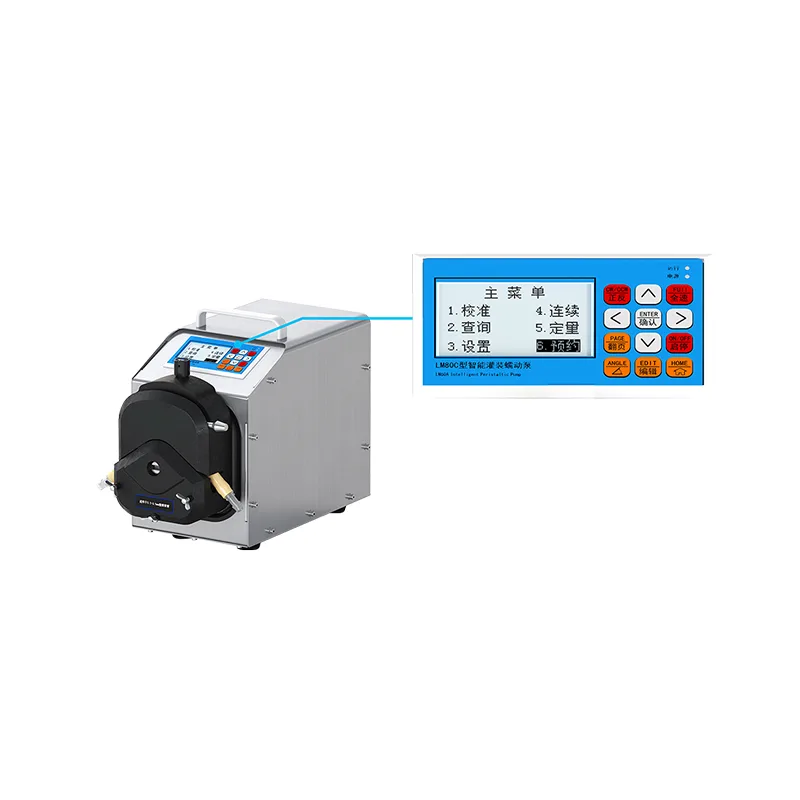

Apa yang menjadikannya pintar?
Menawarkan mod Kalibrasi, Berterusan, Kuantitatif dan Terjadual untuk pemberian dan dosIs berprogram.
Apakah rating elektrik dan persekitaran?
DC48V±10% pada 144 W, 0-40℃ dan RH bawah 80%, standard IP31.
