| Thread Specification | 1/4-28UNF female thread, M12×1 male thread |
|---|---|
| Compatible Fitting | Standard 1/4-28UNF flat-bottom thread fitting (pitch: 0.907mm) |
| Features | With anti-rotation cover to lock the fitting and prevent rotation; designed to pass through the equipment housing and connect internal tubing to the outside (panel must be pre-drilled); male-female thread conversion for leak-free connection with rigid/soft tubing systems |
| Material | Fitting optional in PP, PTFE — non-toxic, odorless, heat resistant, resistant to chemicals and organic solvents; matching fine-thread thin nut optional in PPS, PTFE; anti-rotation cover in PP |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

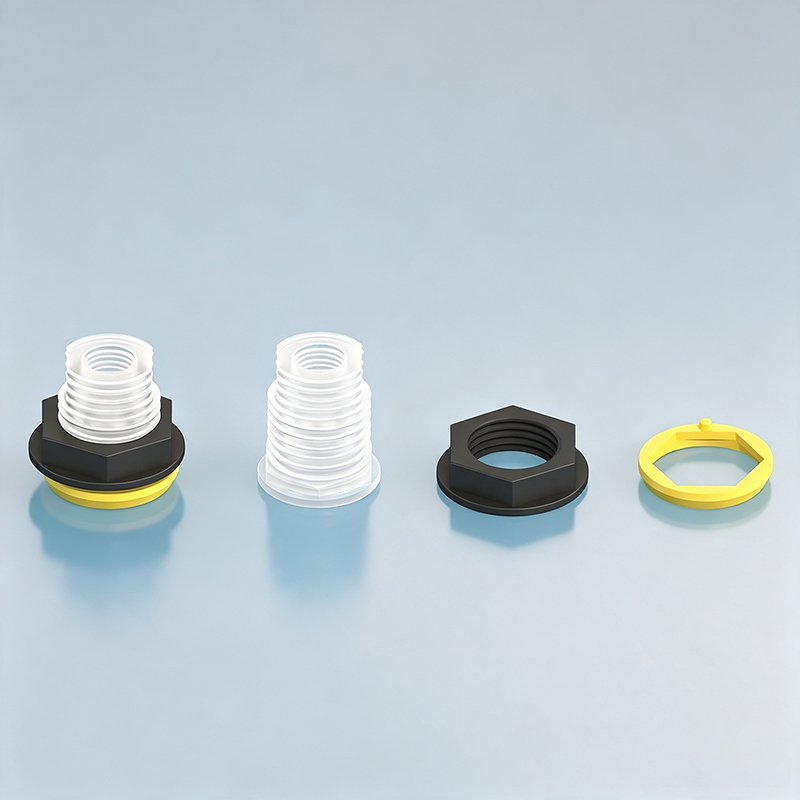

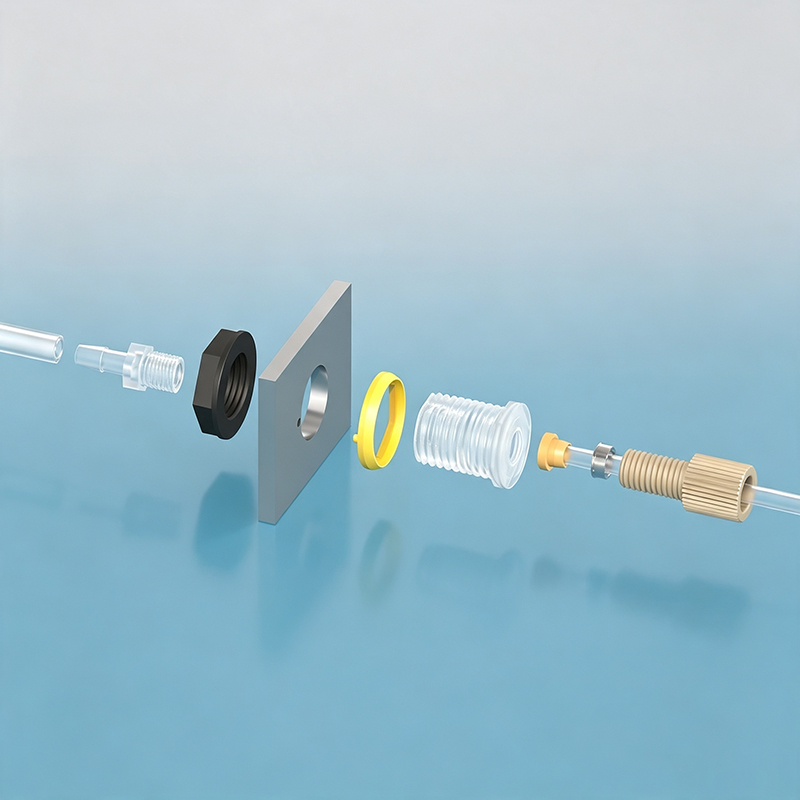

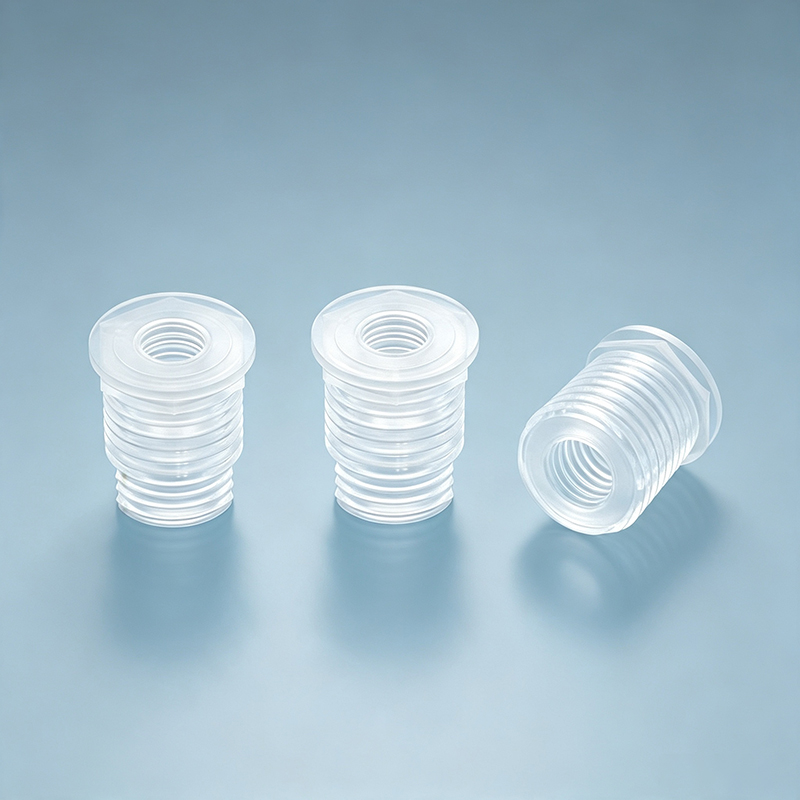

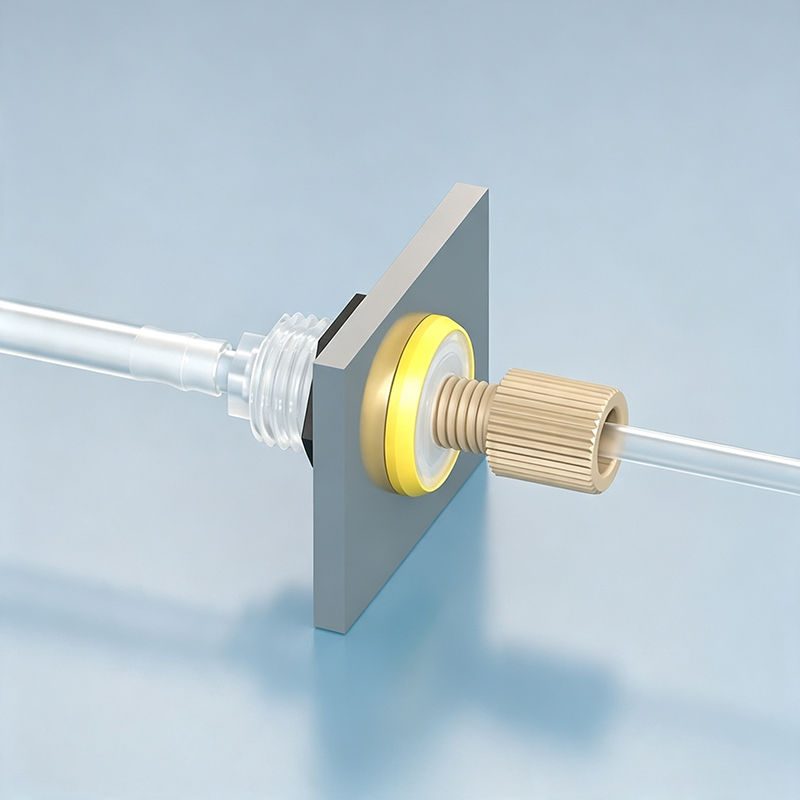

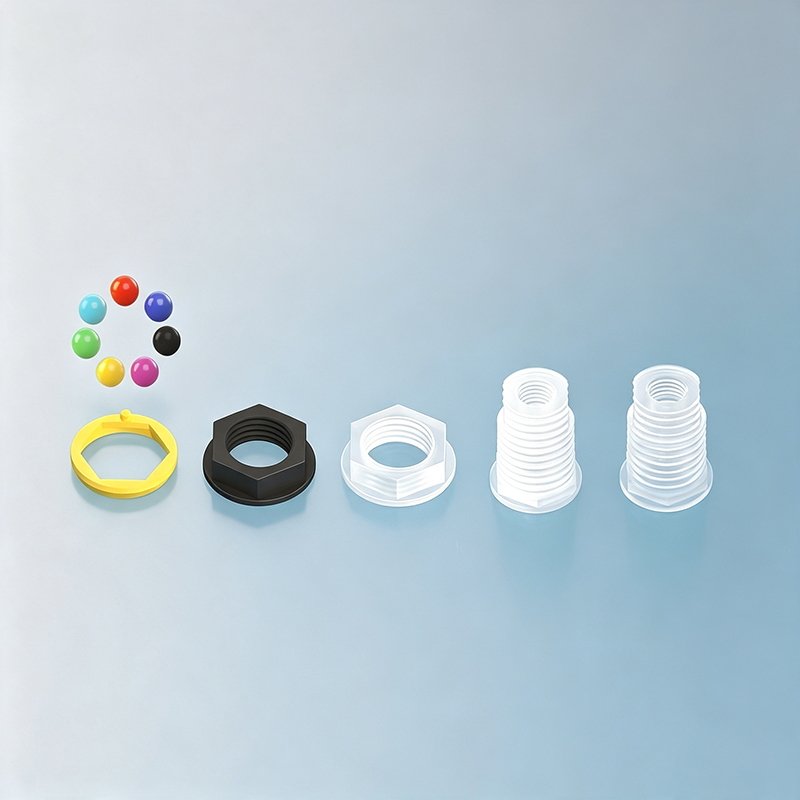

FTG-BH-AR-3P is a Anti-Rotation Bulkhead (3-Piece). Anti-rotation cover locks the fitting to pass through equipment housing.
Thread specification: 1/4-28UNF female thread, M12×1 male thread Compatible tubing: Standard 1/4-28UNF flat-bottom thread fitting
Which thread standards are supported?
Most fittings use 1/4-28UNF; some add M6, M8, M10, 10-32UNF or 6-40UNF. Check the spec table per model before ordering.
Can I connect different tubing sizes?
Yes. Use reducing fittings or adapters such as the hard-soft tube adapter and multi-port fitting to join different diameters.
Are these fittings chemically resistant?
Yes — PP, PTFE, PEEK and PPS bodies resist common solvents; verify media compatibility for your specific model.
Do you provide installation tools?
Yes. Torque hand-tightening tool kits and PEEK/PTFE tube cutters are available as accessories for reliable sealing.
