TUBE-FG-SIL Food-Grade Silicone Tubing

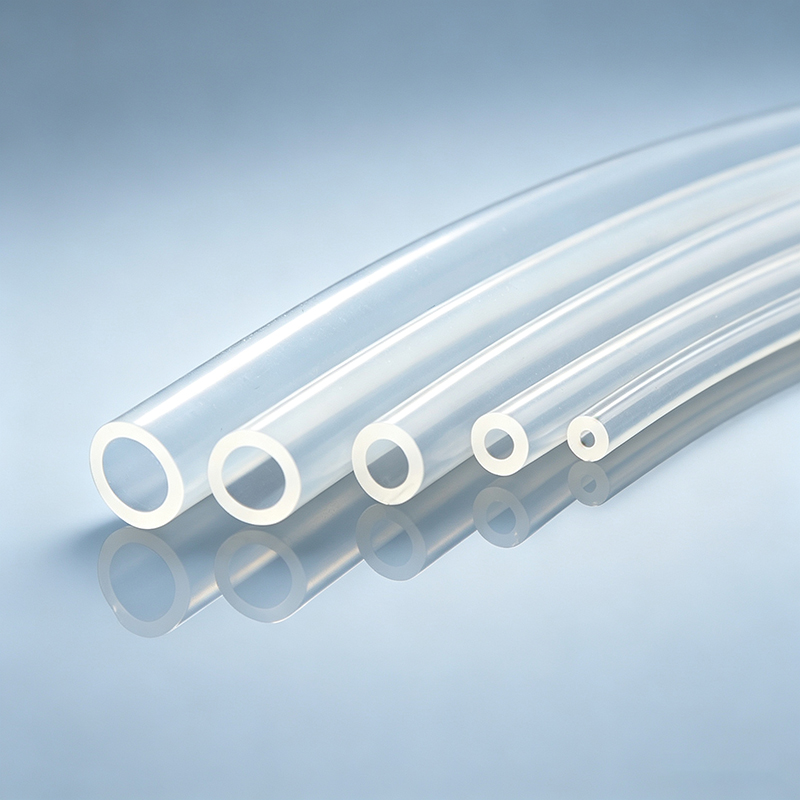

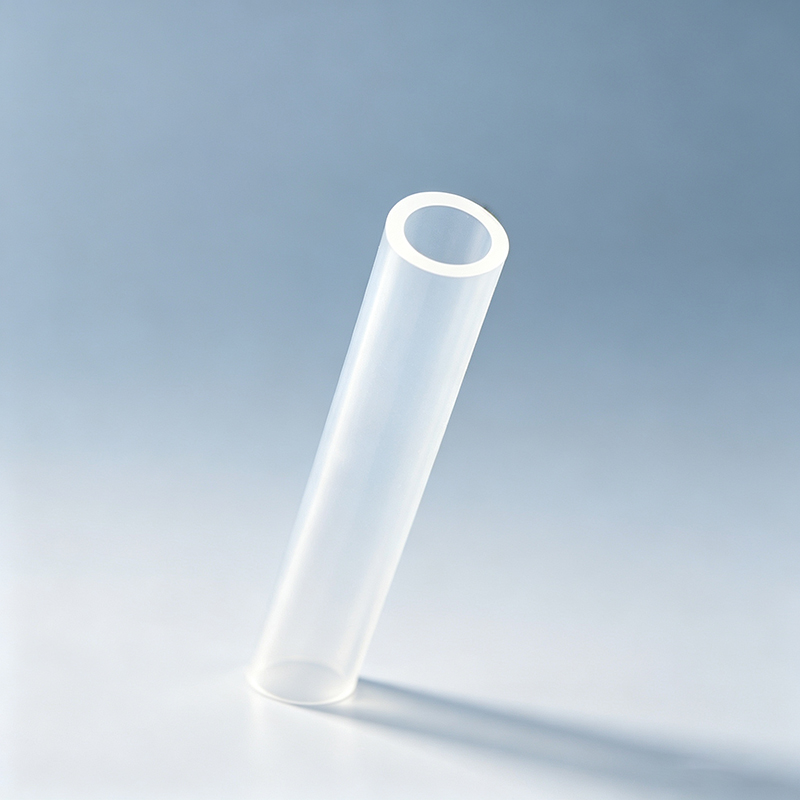

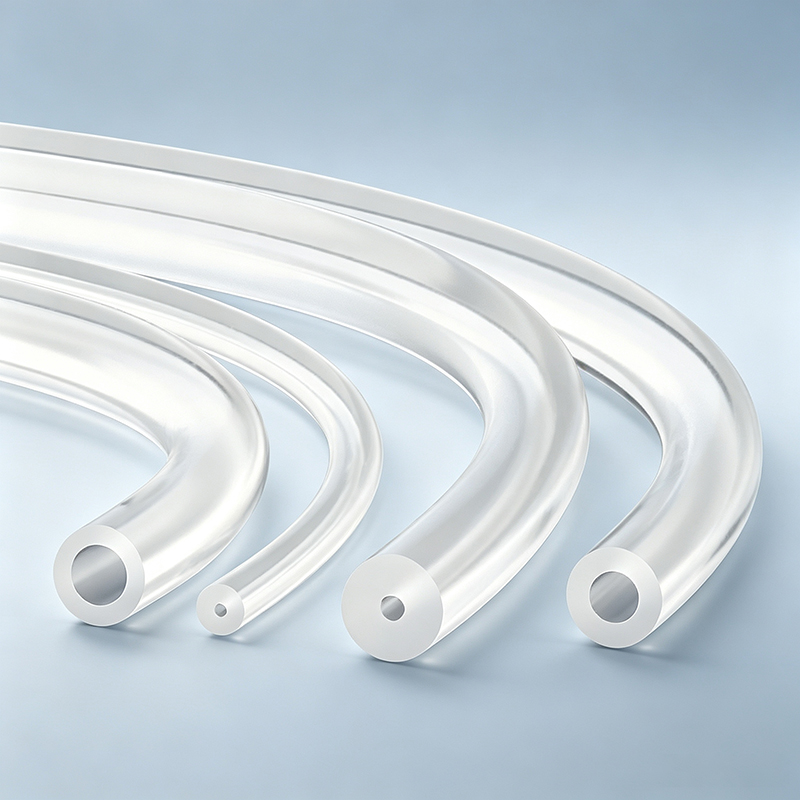

TUBE-FG-SIL Food-Grade Silicone Tubing view 1 TUBE-FG-SIL Food-Grade Silicone Tubing view 2 TUBE-FG-SIL Food-Grade Silicone Tubing view 3

Food-Grade Silicone Tubing

Food-grade silicone peristaltic tubing, high flexibility, -50~200°C, FDA certified. For food/beverage/pharma/biotech transfer applications.
✓ Transparent sourcing — factory-direct price, no markup
Request a Quote WhatsApp Us

Product Specifications

Hardness55 A
Key SpecificationFood-grade silicone peristaltic tubing, high flexibility, -50~200°C, FDA certified.
DescriptionFor food/beverage/pharma/biotech transfer applications.
ApplicationsTubing dedicated for peristaltic pumps
FeaturesMade from imported food-grade silicone, non-toxic and odorless, precise dimensions; excellent resistance to thermal-oxidative aging, ozone aging, light aging and weather aging, widely used across industries
CertificationsManufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request)

Product overview

TUBE-FG-SIL is a Food-Grade Silicone Tubing. Imported food-grade silicone, non-toxic and odorless; high flexibility for food, beverage, pharma and biotech transfer.

Material: Food-grade silicone Temperature range: -50~200°C Hardness: 55A

Specifications

Selection notes

  1. Choose tubing material by your media: PTFE/FEP/PFA and PEEK for broad chemical resistance, silicone for food and pharma, Viton (FKM) for strong acids and organic solvents, PVC for general aqueous use.
  2. Match the outer diameter and hardness to your fitting and pump head; rigid PTFE/FEP or PEEK uses inverted-cone or flared fittings, while soft silicone and rubber use plug-in or barb fittings.
  3. Check the temperature and pressure rating against your process; for high-purity or biopharma transfer prefer PTFE-lined or food-grade silicone tubing.

Frequently asked questions

What tubing materials do you offer?

PTFE/FEP/PFA, PEEK, PVC, Viton (FKM), silicone and rubber — choose by your media and temperature range.

How do I match tubing to my pump head?

Confirm the tubing OD and wall against the pump head spec (e.g. SN15, YZ1515X, RZ1030 series); wrong size causes slip or leakage.

Are these tubings chemically resistant?

Yes — PTFE/FEP/PFA and Viton resist most solvents and strong acids/alkalis; verify compatibility for your specific media.

Do you provide food- or pharma-grade options?

Yes. Food-grade silicone and PTFE-lined tubing are FDA-compliant for food, beverage, pharma and biotech transfer.

产品概述

TUBE-FG-SIL 是一款食品级硅胶管。进口食品级硅胶，无毒无异味；高柔韧，适用于食品、饮料、制药与生物科技输送。

材质: Food-grade silicone 耐温范围: -50~200°C 硬度: 55A

技术规格

选型建议

  1. 按介质选材：PTFE/FEP/PFA 与 PEEK 耐广泛化学腐蚀，硅胶适用于食品与制药，Viton(FKM) 耐强酸强碱与有机溶剂，PVC 用于一般水溶液。
  2. 将外径与硬度匹配接口与泵头；刚性 PTFE/FEP 或 PEEK 配倒锥/扩口接头，软质硅胶/橡胶配插式或倒刺接头。
  3. 核对工艺的温度与压力等级；高纯或生物制药输送优先选 PTFE 衬里或食品级硅胶管。

常见问题

提供哪些管材？

PTFE/FEP/PFA、PEEK、PVC、Viton(FKM)、硅胶与橡胶——按介质与温度范围选用。

如何匹配管材与泵头？

核对管材外径与壁厚对照泵头规格（如 SN15、YZ1515X、RZ1030 系列）；尺寸不符会打滑或泄漏。

这些管材耐化学腐蚀吗？

耐。PTFE/FEP/PFA 与 Viton 可抵抗多数溶剂及强酸强碱；请针对具体介质确认兼容性。

是否提供食品级或制药级选项？

提供。食品级硅胶与 PTFE 衬里管材符合 FDA，适用于食品、饮料、制药与生物科技输送。

Ikhtisar produk

TUBE-FG-SIL adalah Tubing Silikon Food-Grade. Silikon food-grade impor, non-toksik dan tanpa bau; fleksibilitas tinggi untuk transfer pangan, minuman, farmasi dan bioteknologi.

Bahan: Food-grade silicone Rentang suhu: -50~200°C Kekerasan: 55A

Spesifikasi

Catatan pemilihan

  1. Pilih bahan tubing berdasarkan media: PTFE/FEP/PFA dan PEEK tahan kimia luas, silikon untuk pangan dan farmasi, Viton (FKM) untuk asam kuat dan pelarut organik, PVC untuk cairan air umum.
  2. Cocokkan diameter luar dan kekakuan dengan fitting dan pump head; PTFE/FEP atau PEEK kaku menggunakan fitting inverted cone atau flared, sedangkan silikon dan karet lunak menggunakan fitting plug-in atau barb.
  3. Periksa rentang suhu dan tekanan terhadap proses Anda; untuk transfer tinggi-kemurnian atau biopharma utamakan tubing berlapis PTFE atau silikon food-grade.

Pertanyaan umum

Tubing apa saja yang tersedia?

PTFE/FEP/PFA, PEEK, PVC, Viton (FKM), silikon dan karet — pilih berdasarkan media dan rentang suhu.

Bagaimana mencocokkan tubing dengan pump head?

Pastikan OD dan dinding tubing sesuai spec pump head (mis. SN15, YZ1515X, seri RZ1030); ukuran salah menyebabkan slip atau bocor.

Apakah tubing ini tahan kimia?

Ya — PTFE/FEP/PFA dan Viton tahan sebagian besar pelarut serta asam/alkali kuat; verifikasi kompatibilitas media Anda.

Apakah tersedia opsi grade pangan atau farmasi?

Ya. Silikon food-grade dan tubing berlapis PTFE memenuhi FDA untuk transfer pangan, minuman, farmasi dan bioteknologi.

Tổng quan sản phẩm

TUBE-FG-SIL là Ống Silicone Cấp Thực Phẩm. Silicone cấp thực phẩm nhập khẩu, không độc không mùi; độ mềm dẻo cao cho truyền dẫn thực phẩm, đồ uống, dược phẩm và sinh học.

Vật liệu: Food-grade silicone Dải nhiệt độ: -50~200°C Độ cứng: 55A

Thông số kỹ thuật

Lưu ý chọn mua

  1. Chọn vật liệu ống theo môi chất: PTFE/FEP/PFA và PEEK chịu hóa chất rộng, silicone cho thực phẩm và dược phẩm, Viton (FKM) cho axit mạnh và dung môi hữu cơ, PVC cho dung dịch nước thông thường.
  2. Khớp đường kính ngoài và độ cứng với đầu nối và pump head; PTFE/FEP hoặc PEEK cứng dùng đầu nối inverted cone hoặc flared, còn silicone và cao su mềm dùng đầu nối plug-in hoặc barb.
  3. Kiểm tra mức nhiệt độ và áp suất so với quy trình; với truyền dẫn cao tinh khiết hoặc sinh dược phẩm, ưu tiên ống lót PTFE hoặc silicone cấp thực phẩm.

Câu hỏi thường gặp

Có những vật liệu ống nào?

PTFE/FEP/PFA, PEEK, PVC, Viton (FKM), silicone và cao su — chọn theo môi chất và dải nhiệt độ.

Làm sao khớp ống với pump head?

Xác nhận OD và thành ống đối chiếu spec pump head (vd SN15, YZ1515X, seri RZ1030); sai kích thước gây trượt hoặc rò.

Các ống này có chịu hóa chất không?

Có — PTFE/FEP/PFA và Viton chịu phần lớn dung môi cùng axit/kiềm mạnh; hãy xác nhận tương thích với môi chất cụ thể.

Có tùy chọn cấp thực phẩm hoặc dược phẩm không?

Có. Silicone cấp thực phẩm và ống lót PTFE đạt chuẩn FDA cho truyền dẫn thực phẩm, đồ uống, dược phẩm và sinh học.

ภาพรวมผลิตภัณฑ์

TUBE-FG-SIL คือท่อซิลิโคนเกรดอาหาร ซิลิโคนเกรดอาหารนำเข้า ปลอดสารพิษและไม่มีกลิ่น ความยืดหยุ่นสูงสำหรับการถ่ายโอนอาหาร เครื่องดื่ม เภสัชภัณฑ์และไบโอเทค

วัสดุ: Food-grade silicone ช่วงอุณหภูมิ: -50~200°C ความแข็ง: 55A

มาตรฐานทางเทคนิค

ข้อควรพิจารณาในการเลือก

  1. เลือกวัสดุท่อตามสื่อ: PTFE/FEP/PFA และ PEEK ทนเคมีกว้าง ซิลิโคนสำหรับอาหารและเภสัชภัณฑ์ Viton (FKM) สำหรับกรดแรงและตัวทำละลายอินทรีย์ PVC สำหรับของเหลวน้ำทั่วไป
  2. จับคู่เส้นผ่านศูนย์กลางภายนอกและความแข็งกับข้อต่อและหัวปั๊ม PTFE/FEP หรือ PEEK แข็งใช้ข้อต่อ inverted cone หรือ flared ส่วนซิลิโคนและยางอ่อนใช้ข้อต่อ plug-in หรือ barb
  3. ตรวจสอบอุณหภูมิและระดับความดันเทียบกับกระบวนการของคุณ สำหรับการถ่ายโอนความบริสุทธิ์สูงหรือไบโอฟาร์มาเชียให้เลือกท่อบุ PTFE หรือซิลิโคนเกรดอาหาร

คำถามที่พบบ่อย

มีวัสดุท่อแบบใดบ้าง

PTFE/FEP/PFA PEEK PVC Viton (FKM) ซิลิโคนและยาง เลือกตามสื่อและช่วงอุณหภูมิ

จับคู่ท่อกับหัวปั๊มได้อย่างไร

ยืนยัน OD และผนังท่อให้ตรงตาม spec หัวปั๊ม (เช่น SN15 YZ1515X ซีรีส์ RZ1030) ขนาดไม่ตรงทำให้ลื่นหรือรั่ว

ท่อเหล่านี้ทนเคมีหรือไม่

ทน PTFE/FEP/PFA และ Viton ทนตัวทำละลายส่วนใหญ่รวมถึงกรด/ด่างแรง ตรวจสอบความเข้ากันได้กับสื่อของคุณ

มีตัวเลือกเกรดอาหารหรือเภสัชภัณฑ์หรือไม่

มี ซิลิโคนเกรดอาหารและท่อบุ PTFE ผ่านมาตรฐาน FDA สำหรับการถ่ายโอนอาหาร เครื่องดื่ม เภสัชภัณฑ์และไบโอเทค

Gambaran produk

TUBE-FG-SIL ialah Tiub Silikon Food-Grade. Silikon food-grade import, tidak toksik dan tidak berbau; fleksibiliti tinggi untuk pemindahan makanan, minuman, farmasi dan bioteknologi.

Bahan: Food-grade silicone Julat suhu: -50~200°C Kekerasan: 55A

Spesifikasi

Nota pemilihan

  1. Pilih bahan tiub mengikut media: PTFE/FEP/PFA dan PEEK tahan kimia meluas, silikon untuk makanan dan farmasi, Viton (FKM) untuk asid kuat dan pelarut organik, PVC untuk cecair air am.
  2. Padankan diameter luar dan kekakuan dengan fitting dan pump head; PTFE/FEP atau PEEK tegar menggunakan fitting inverted cone atau flared, manakala silikon dan getah lembut menggunakan fitting plug-in atau barb.
  3. Semak julat suhu dan tekanan berbanding proses anda; untuk pemindahan kemurnian tinggi atau biopharma utamakan tiub berlapik PTFE atau silikon food-grade.

Soalan lazim

Apakah tiub yang ditawarkan?

PTFE/FEP/PFA, PEEK, PVC, Viton (FKM), silikon dan getah — pilih mengikut media dan julat suhu.

Bagaimana menyamakan tiub dengan pump head?

Sahkan OD dan dinding tiub berbanding spec pump head (cth SN15, YZ1515X, siri RZ1030); saiz silap menyebabkan gelincir atau bocor.

Adakah tiub ini tahan kimia?

Ya — PTFE/FEP/PFA dan Viton tahan kebanyakan pelarut serta asid/alkali kuat; sahkan keserasian media anda.

Adakah pilihan gred makanan atau farmasi disediakan?

Ya. Silikon food-grade dan tiub berlapik PTFE mematuhi FDA untuk pemindahan makanan, minuman, farmasi dan bioteknologi.

Pangkalahatang-ideya ng produkto

TUBE-FG-SIL ay isang Food-Grade Silicone Tubing. Imported food-grade silicone, non-toxic at odorless; high flexibility para sa food, beverage, pharma at biotech transfer.

Materyal: Food-grade silicone Saklaw ng temperatura: -50~200°C Hardness: 55A

Mga detalye ng produkto

Mga paalala sa pagpili

  1. Piliin ang materyal ng tubing ayon sa media: PTFE/FEP/PFA at PEEK para sa malawak na chemical resistance, silicone para sa pagkain at pharma, Viton (FKM) para sa malakas na acid at organic solvents, PVC para sa karaniwang aqueous solution.
  2. Iakma ang outer diameter at hardness sa fitting at pump head; ang matigas na PTFE/FEP o PEEK ay gumagamit ng inverted cone o flared fittings, habang ang malambot na silicone at rubber ay gumagamit ng plug-in o barb fittings.
  3. Suriin ang temperatura at pressure rating laban sa iyong proseso; para sa high-purity o biopharma transfer, piliin ang PTFE-lined o food-grade silicone tubing.

Mga madalas itanong

Anong mga materyal ng tubing ang iniaalok?

PTFE/FEP/PFA, PEEK, PVC, Viton (FKM), silicone at rubber — piliin ayon sa media at temperatura range.

Paano i-match ang tubing sa pump head?

Kumpirmahin ang OD at dingding ng tubing laban sa spec ng pump head (hal. SN15, YZ1515X, serye RZ1030); maling sukat ay sanhi ng slip o leak.

Ang mga tubing ba ay resistant sa kemikal?

Oo — ang PTFE/FEP/PFA at Viton ay lumalaban sa karamihang solvents at malakas na acid/alkali; i-verify ang compatibility sa iyong specific media.

Nagbibigay ba kayo ng food- o pharma-grade options?

Oo. Ang food-grade silicone at PTFE-lined tubing ay FDA-compliant para sa food, beverage, pharma at biotech transfer.

Transparent Sourcing, Every Order

This product is sourced factory-direct from a certified Chinese manufacturer. You pay the factory price — no markup. Our income comes from the export tax rebate, not from your bill.
