| Material Temperature Range | PEEK (-50°C~+260°C), PPS (-40°C~+200°C), Stainless steel (-196°C~+450°C) |
|---|---|
| Thread Specification | 1/4-28UNF (pitch: 0.907mm), M6 (pitch: 1mm), 10-32UNF, 6-40UNF (pitch: 0.635mm) |
| Compatible Tubing | For 1.6/2.0/2.5/3.0/3.2mm OD PTFE/FEP and other semi-rigid tubing |
| Features | A traditional flat-bottom fitting. The tube end is flared by deformation to form a cone, then compressed to create a sealed rigid tubing connection |
| Sealing | Does not change tubing ID, no flow restriction, stable flow; can be repeatedly disassembled without affecting sealing |
| Chemical Resistance | Resistant to chemicals and various organic solvents; plug available in PP, PTFE |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

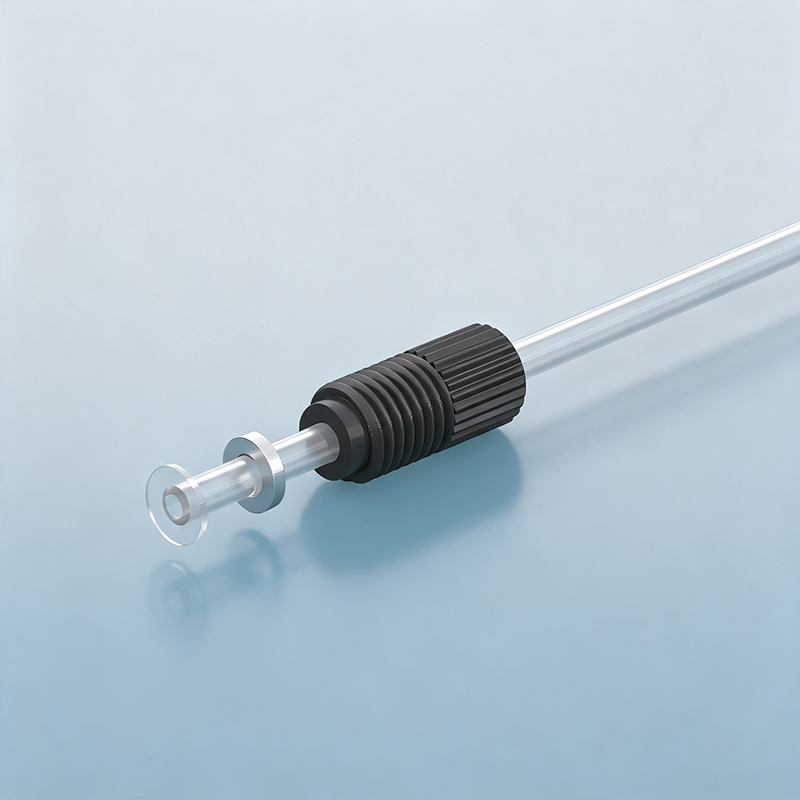

FTG-FLARED 是一款扩口式接头。管口扩成锥形，靠压缩密封且不改变管内径。
螺纹规格: 1/4-28UNF (pitch: 0.907mm), M6 (pitch: 1mm), 10-32UNF, 6-40UNF (pitch: 0.635mm) 适用管径: For 1.6/2.0/2.5/3.0/3.2mm OD PTFE/FEP and other semi-rigid tubing 温度 / 压力等级: PEEK (-50°C~+260°C), PPS (-40°C~+200°C), Stainless steel (-196°C~+450°C)
支持哪些螺纹标准？
多数接头采用 1/4-28UNF；部分增加 M6、M8、M10、10-32UNF 或 6-40UNF。订购前请核对各型号的规格表。
能否连接不同管径？
可以。使用异径接头或硬-软管适配器、多通接头来连接不同直径。
这些接头耐化学腐蚀吗？
耐。PP、PTFE、PEEK、PPS 本体可抵抗常见溶剂；请针对具体型号确认介质兼容性。
是否提供安装工具？
提供。扭矩手动拧紧工具套件与 PEEK/PTFE 切管器作为配件，确保密封可靠。
