| Control Method | Keyboard control / Communication control (RS485) / Foot pedal control / Analog control |
|---|---|
| Compatible Pump Head | SN15/FG16/YZ series |
| Compatible Pump Tubing | 14#, 19#, 16#, 25#, 17#, 18#, 15#, 24# |
| Speed Range / Max Reference Flow | 0.1 rpm ~ 300/400 rpm / max 1650 ml/min |
| Speed Accuracy | ±0.1 rpm |
| Power Supply | DC24V±10% |
| Power Consumption | 35W |
| Operating Temperature | 0~40℃ |
| Operating Humidity | <80% |
| Protection Rating | IP31 |
| Weight | 1.64 kg (excluding pump head) |
| Note | SN series pump heads at 300rpm; other pump heads data at 400rpm, tested with water at standard conditions, for reference only |
| Industries Served | Food processing, pharmaceuticals, chemical and laboratory research, agriculture and water treatment. Specific applications include: dispensing, sampling, metering, filtration, fermentation. If it is fluid, a peristaltic pump can pump it. In many cases, peristaltic pumps are the ideal choice for pumping abrasive or corrosive fluids. |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

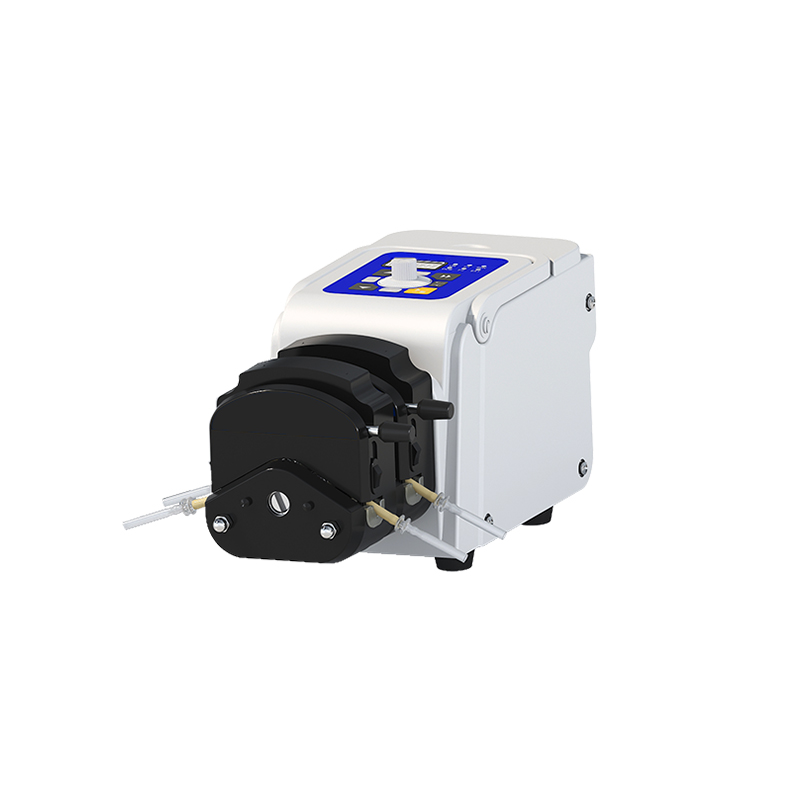

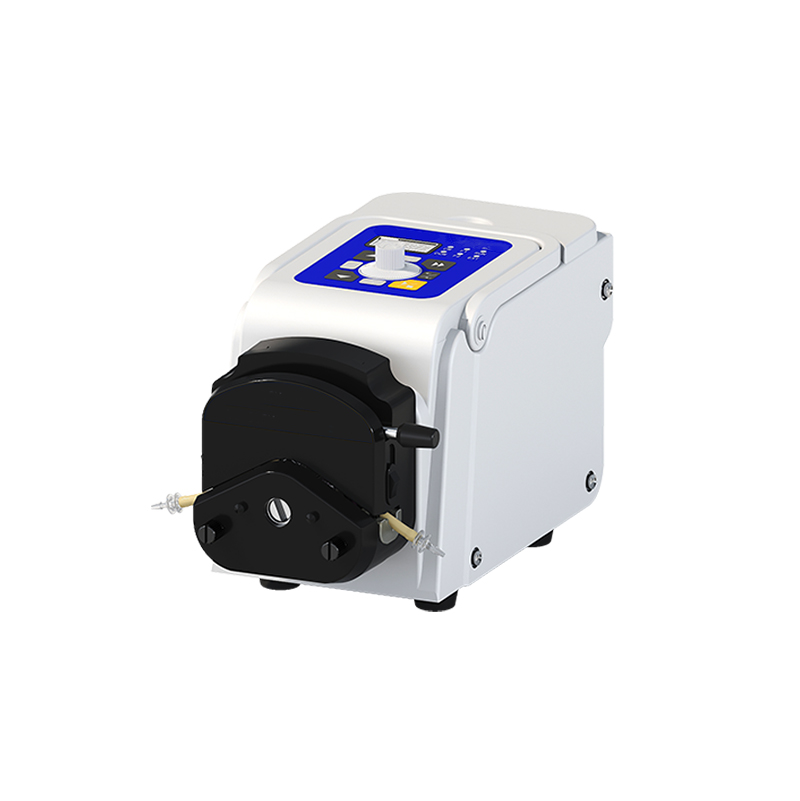

Ang LM40A ay isang kompaktong box-type peristaltic pump para sa paglipat ng likido sa bangko at OEM hanggang 1.65 L/min. Sinusuportahan nito ang keyboard, RS485 communication, foot pedal, at analog control, kaya direkta itong napapasok sa dispensing, filtration, cooling, at food-and-beverage lines nang walang karagdagang controller.

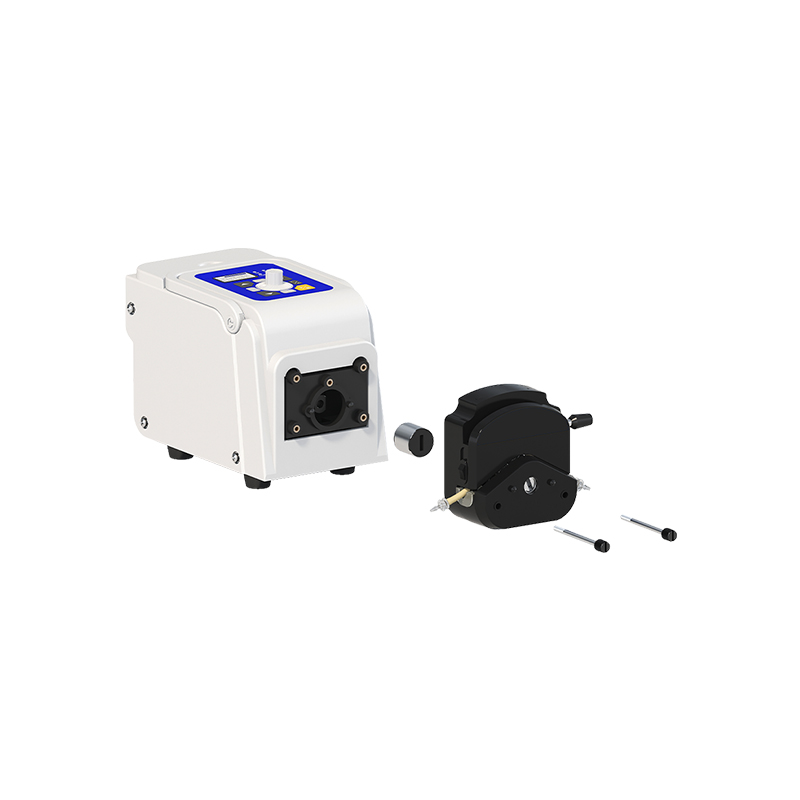

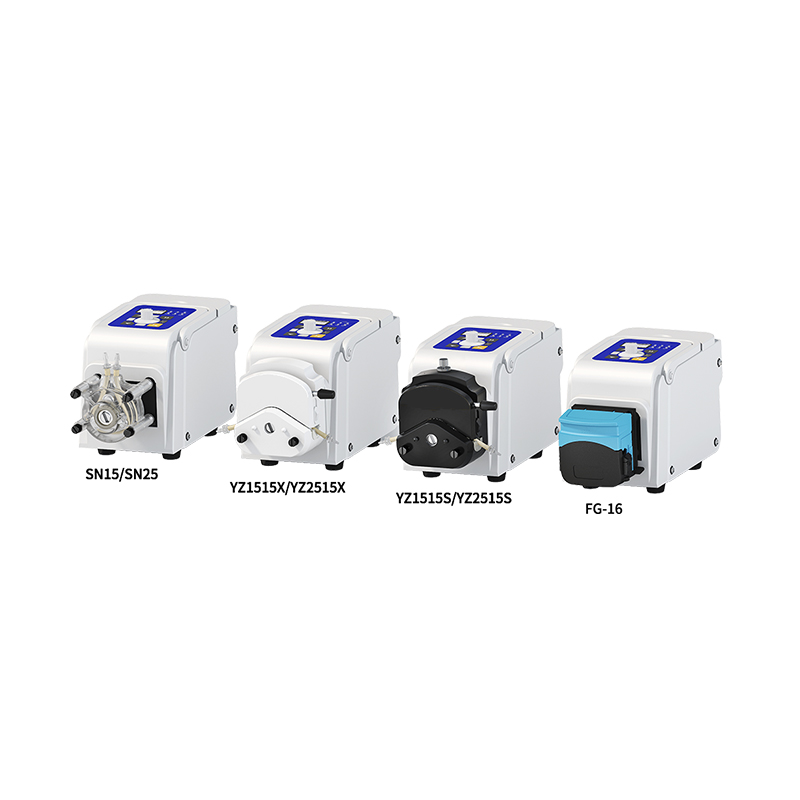

Ipinapatakbo nito ang SN15, FG16 at YZ series pump heads at tumatanggap ng tubing na 14#, 19#, 16#, 25#, 17#, 18#, 15# at 24#. Ang bilis ay mula 0.1 rpm hanggang 300/400 rpm na may reference flow na malapit sa 1650 ml/min, at ang bilis ay nananatili sa loob ng ±0.1 rpm. Ang kuryente ay DC24V±10% sa 35 W, IP31, na may bigat na 1.64 kg hindi kasama ang pump head.
Gaano karami ang flow na ibinibigay ng LM40A?
Hanggang humigit-kumulang 1.65 L/min (1650 ml/min) na reference, na may bilis mula 0.1 rpm hanggang 300/400 rpm depende sa pump head.
Aling pump heads at tubing ang akma?
Ipinapatakbo nito ang SN15, FG16 at YZ series heads at tumatanggap ng tubing na 14#, 19#, 16#, 25#, 17#, 18#, 15# at 24#.

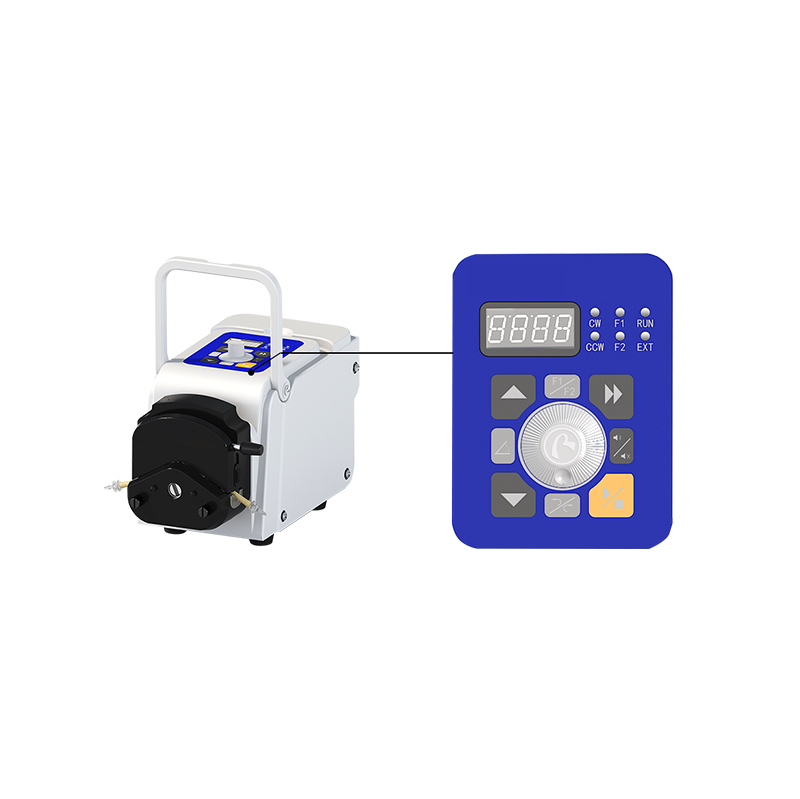

Paano ito kinokontrol?
Sinusuportahan ang keyboard, RS485 communication, foot pedal, at analog input.
Ano ang electrical at environmental ratings?
DC24V±10% sa 35 W, 0-40℃ at below 80% RH, IP31.
