| Liquid Volume Accuracy | Error ≤1% (rated stroke) |
|---|---|
| Liquid Volume Precision | Repeatability error 0.3%~0.7% (rated stroke) |
| Expected Service Life | 3 million cycles leak-free (test medium: pure water; 1 count per rated stroke) |
| Specifications | 3 ml | 8 ml |
| Max Speed | 600 rpm | 300 rpm |
| Rated Stroke (Control Steps) | 18 mm | 19.2 mm (3600 steps | 3840 steps) |
| Rated Stroke Runtime | 1.8-1080s | 3.84-1152s |
| Control Resolution (Min. Sample) | 0.005 mm (0.833 ul | 2.083 ul) |
| Linear Speed | 0.017-10 mm/s | 0.017-5 mm/s |
| Drive Structure | Trapezoidal lead screw (1 mm lead) |
| Wetted Material | Borosilicate glass, PTFE, PPS, FFKM (seal); PEEK/EPDM/FKM (solenoid valve) |
| Max Fluid Path Pressure (Reference) | -0.075~0.15 MPa |
| Communication Rate | 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps |
| Control Protocol | ASCII, custom, Modbus protocol |
| Tubing Interface | 1/4-28UNF internal thread |
| Power Supply | DC24V/3A |
| Working Environment | Temperature: 5℃~55℃; relative humidity: ≤80% non-condensing |
| Weight | 0.48 kg | 0.5 kg |
| Application Scope | As a core accessory for fluid transfer systems requiring high precision and stability in injection |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

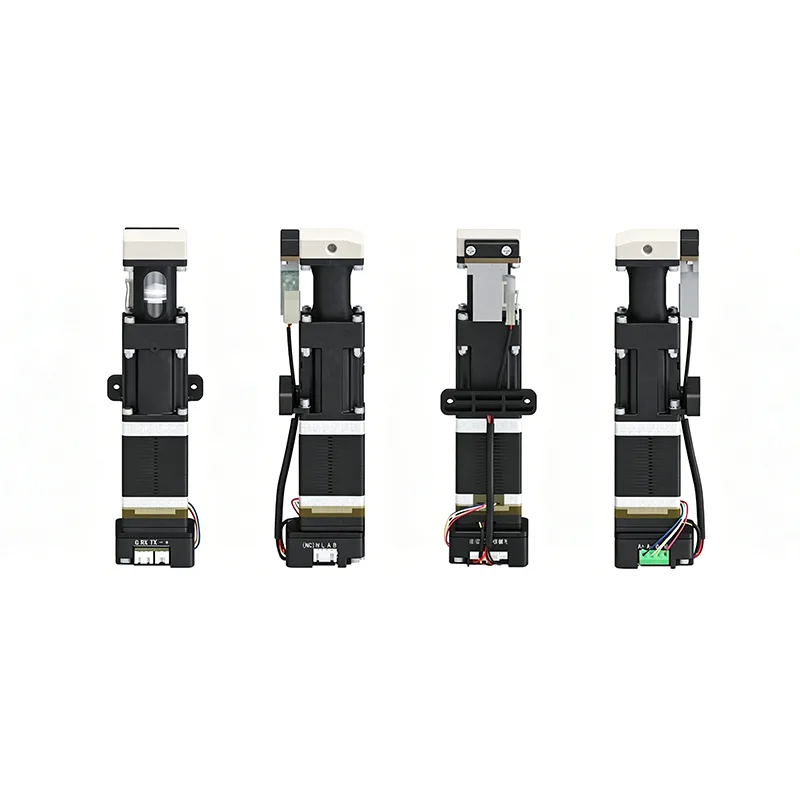

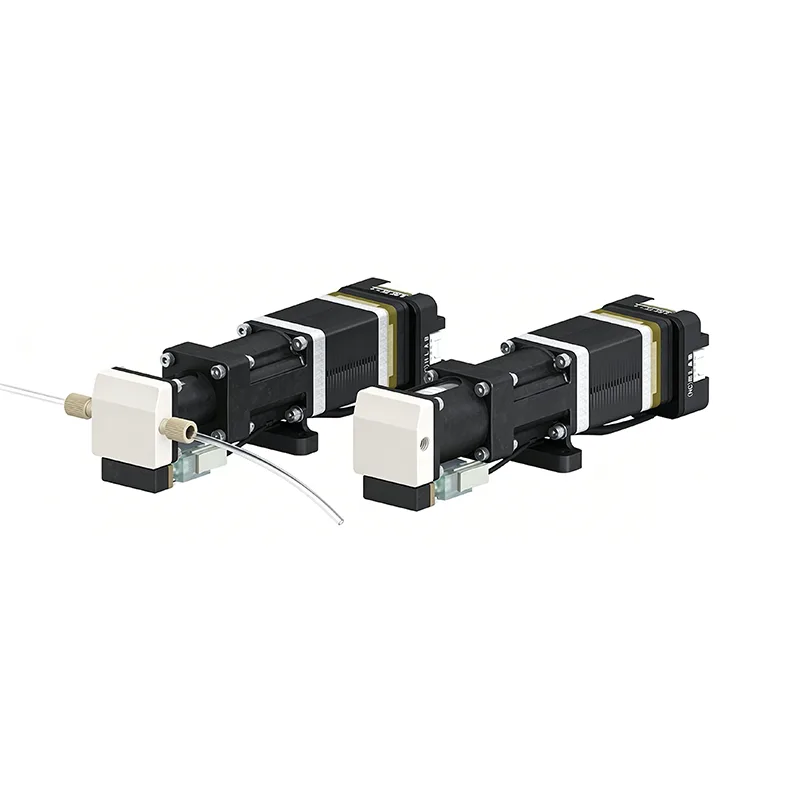

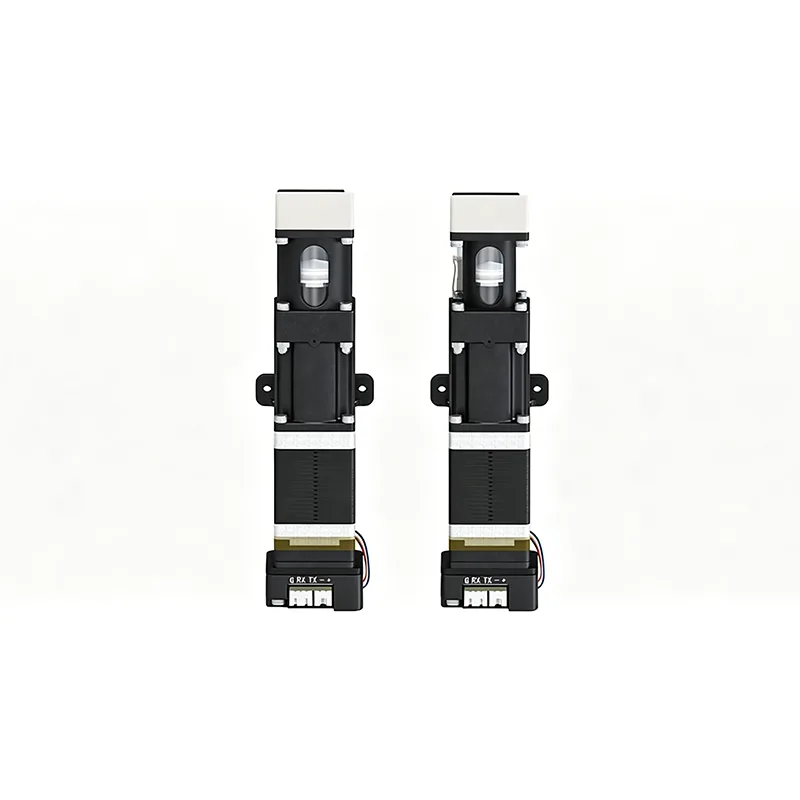

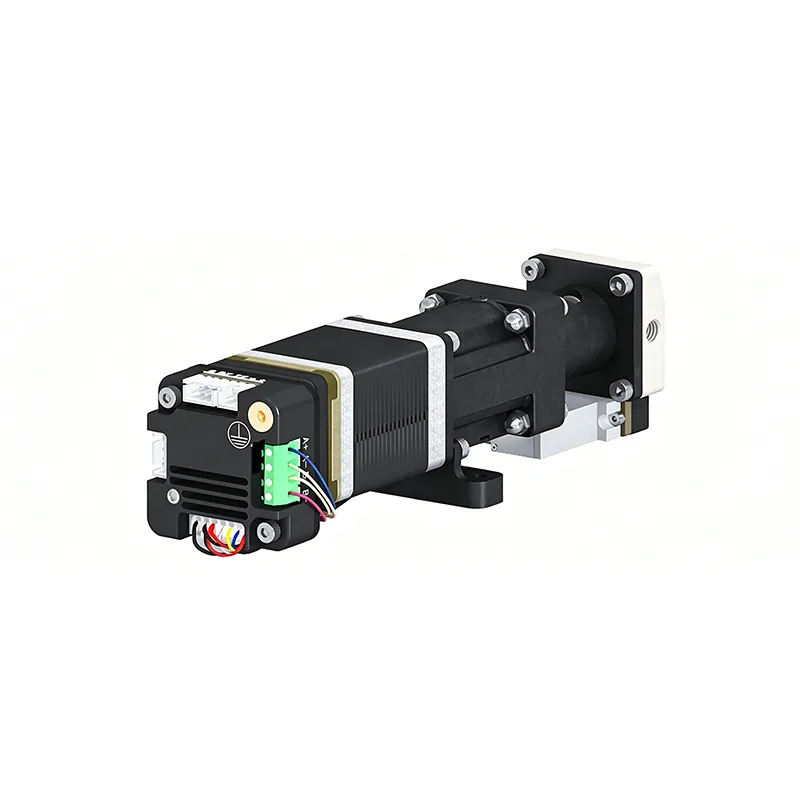

Ang SY-09S ay isang vertical injection pump na may dual-port flow switching, na binuo para sa low-pressure bidirectional fluid control. Maaari nitong itulak o hilahin ang likido sa parehong valve arrangement, na angkop para sa cell at tissue perfusion at microfluidic circulation loops kung saan ang pagbabago ng direksyon ng daloy ay bahagi ng protocol.
Tumatanggap ito ng 3 ml at 8 ml syringes na may top speeds na 600 rpm at 300 rpm, na tumatakbo sa 18 mm (3600 hakbang) at 19.2 mm (3840 hakbang) rated strokes sa 0.005 mm resolution, humigit-kumulang 0.833 ul o 2.083 ul bawat hakbang, na may bilis na hanggang 10 mm/s sa 3 ml version. Ang error sa volume ay nasa loob ng 1% ng rated stroke na may repeatability na 0.3% hanggang 0.7%; ang fluid path ay nire-reference sa -0.075 hanggang 0.15 MPa para sa low-pressure bidirectional duty. Pinagsasama ng wetted parts ang borosilicate glass, PTFE, PPS at FFKM seal na may PEEK, EPDM at FKM sa solenoid valve; ang drive ay rated sa 3 milyong leak-free cycles.
Ano ang ginagawa ng dual-port flow switching?
Pinapayagan nito ang pump na magtulak o humila sa parehong valve arrangement, na nagbibigay ng bidirectional flow para sa perfusion at circulation protocols.
Anong mga syringe ang ginagamit ng SY-09S?
Tumatanggap ito ng 3 ml at 8 ml syringes, na may 600 rpm at 300 rpm top speeds ayon sa pagkakasunod.
Anong pressure range ang dinisenyo para dito?
Ang fluid path ay nire-reference sa -0.075 hanggang 0.15 MPa, angkop sa low-pressure bidirectional perfusion work.
Gaano ito katumpak?
Ang error sa volume ay nasa loob ng 1% ng rated stroke, na may repeatability na 0.3% hanggang 0.7%.
