| Compatible Tubing | For tubing with 1.0-6.4mm inner diameter |
|---|---|
| Key Specification | L-type hose bulkhead fitting, panel mount, 90°, anti-rotation, plug-in. |
| Description | For devices with side-mounted hose outlets. |

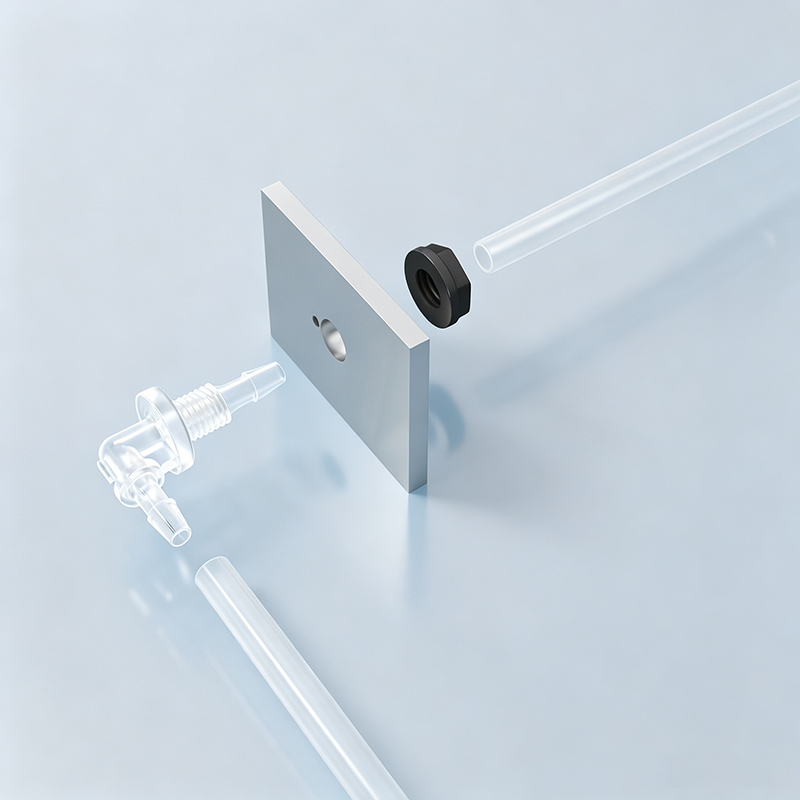

| Features | Plug-in hose straight butt connector, can pass through the equipment housing to connect internal hose to the outside; anti-rotation hole locks the fitting to prevent rotation, simple and convenient to use |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

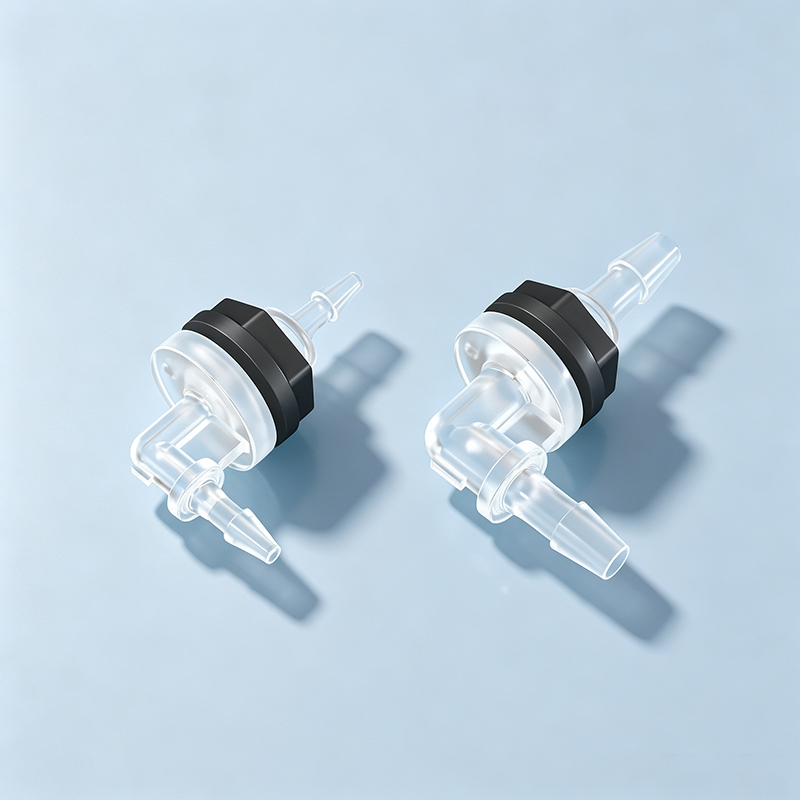

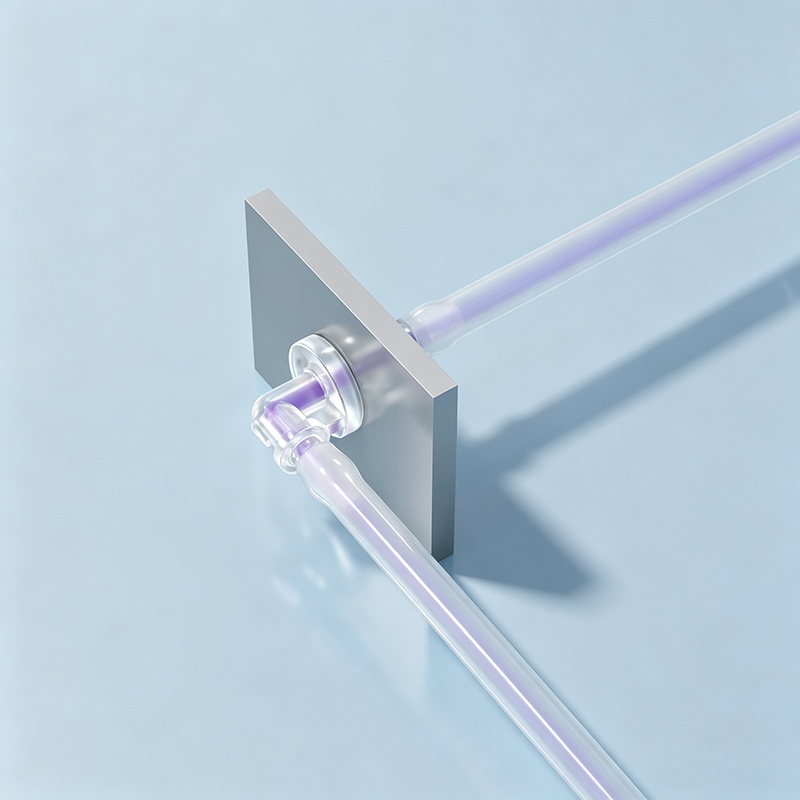

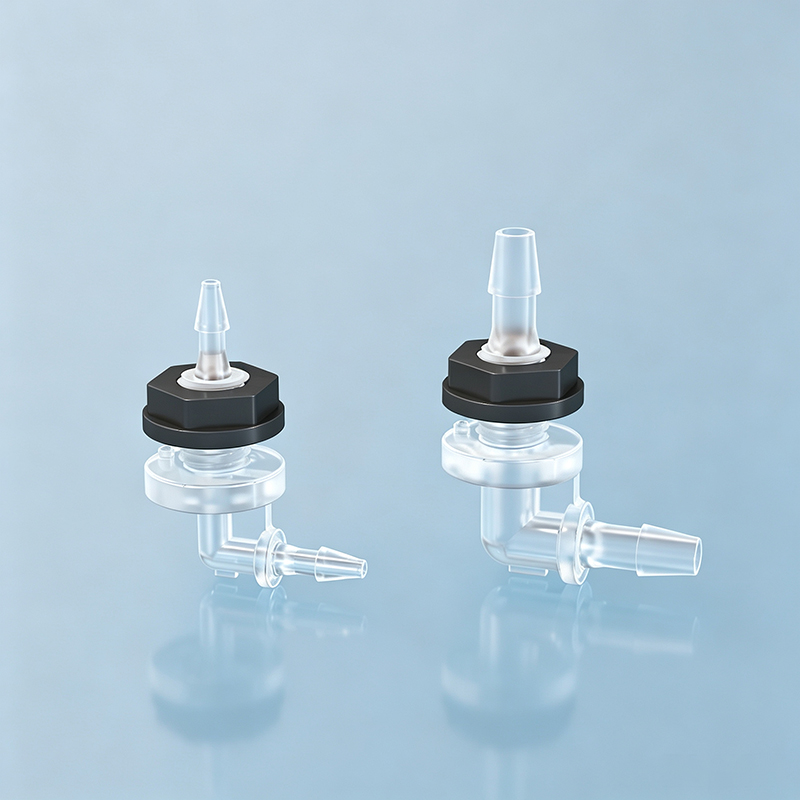

FTG-L-BF is a L-Type Hose Bulkhead Fitting. 90° panel-mount L bulkhead for side-mounted hose outlets.
Compatible tubing: For tubing with 1.0-6.4mm inner diameter
Which thread standards are supported?
Most fittings use 1/4-28UNF; some add M6, M8, M10, 10-32UNF or 6-40UNF. Check the spec table per model before ordering.
Can I connect different tubing sizes?
Yes. Use reducing fittings or adapters such as the hard-soft tube adapter and multi-port fitting to join different diameters.
Are these fittings chemically resistant?
Yes — PP, PTFE, PEEK and PPS bodies resist common solvents; verify media compatibility for your specific model.
Do you provide installation tools?
Yes. Torque hand-tightening tool kits and PEEK/PTFE tube cutters are available as accessories for reliable sealing.
