What is the PEEK-3 and what is it used for?

It is used for laboratory and pharmaceutical and related applications.

What are the main specifications of the PEEK-3?

Main specifications: measurement range PEEK (-50°C~+260°C), PPS (-40°C~+200°C), Stainless steel (-196°C~+450°C)

How is the PEEK-3 powered and where is it typically used?

It is powered by a battery and typically used in laboratory and pharmaceutical.

PEEK-FLR PEEK Flared Fitting

Name: PEEK Flared Fitting
Brand: JiuYuHub
SKU: PEEK-FLR
Availability: InStock

Product Specifications

Material Temperature Range	PEEK (-50°C~+260°C), PPS (-40°C~+200°C), Stainless steel (-196°C~+450°C)
Thread Specification	1/4-28UNF, M6, 10-32UNF, 6-40UNF
Compatible Tubing	For 1.6/2.0/2.5/3.0/3.2mm OD PTFE/FEP and other semi-rigid tubing
Features	Traditional flat-bottom fitting. Does not change tubing ID, no flow restriction, stable flow; can be repeatedly disassembled without affecting sealing
(thread pitch)	0.907mm, M6 (pitch: 1mm)
6-40UNF (thread pitch)	0.635 mm
Applications	Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM
Certifications	Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request)

Product overview

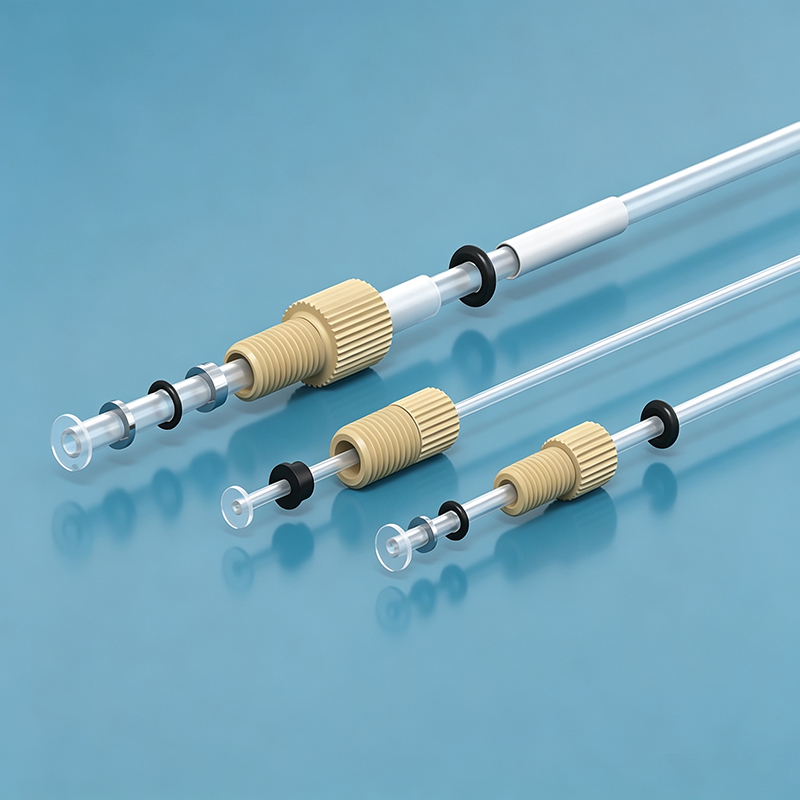

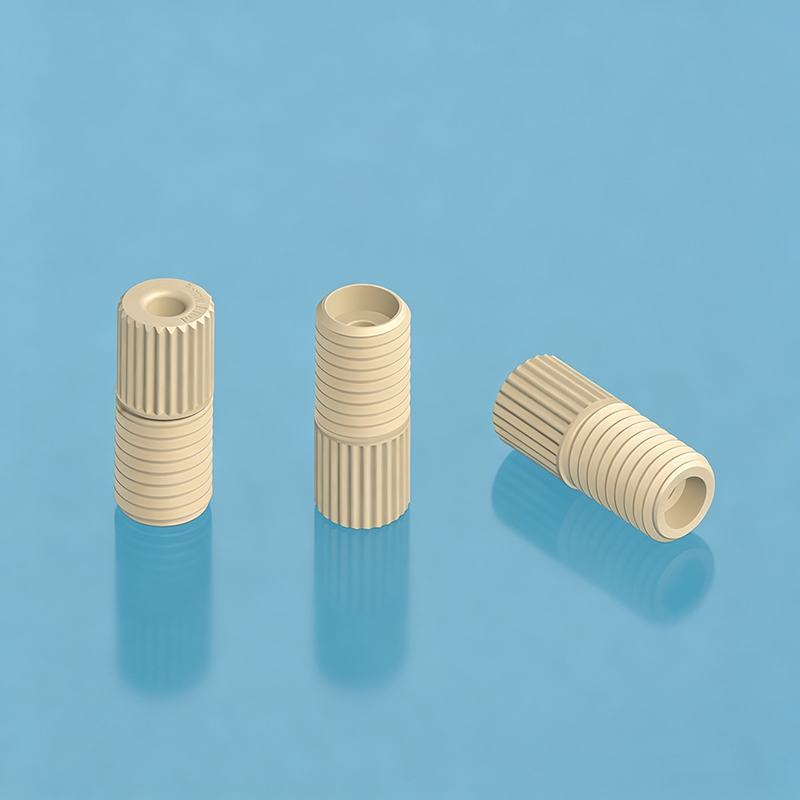

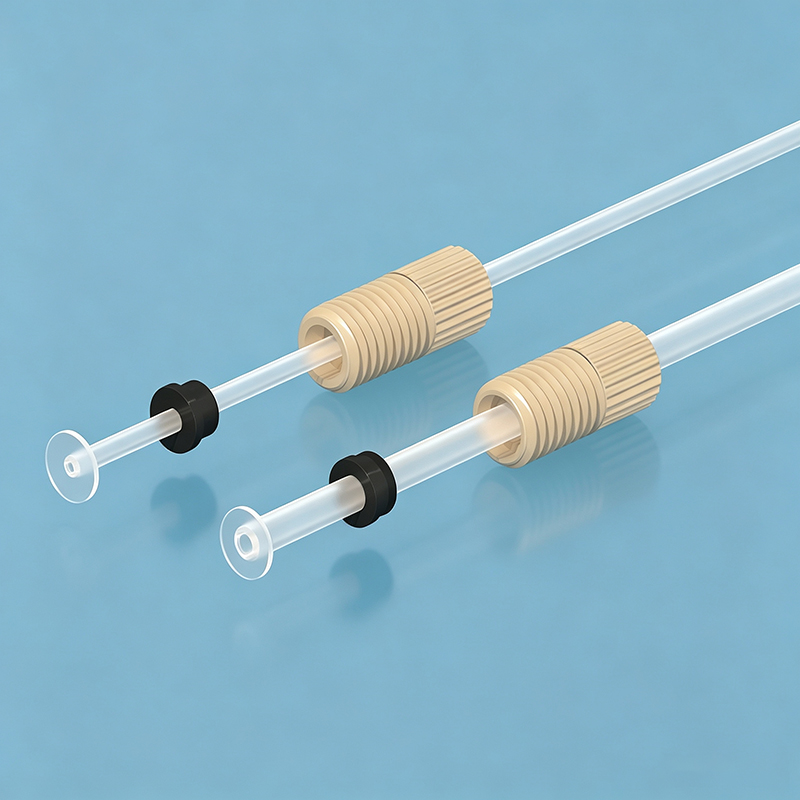

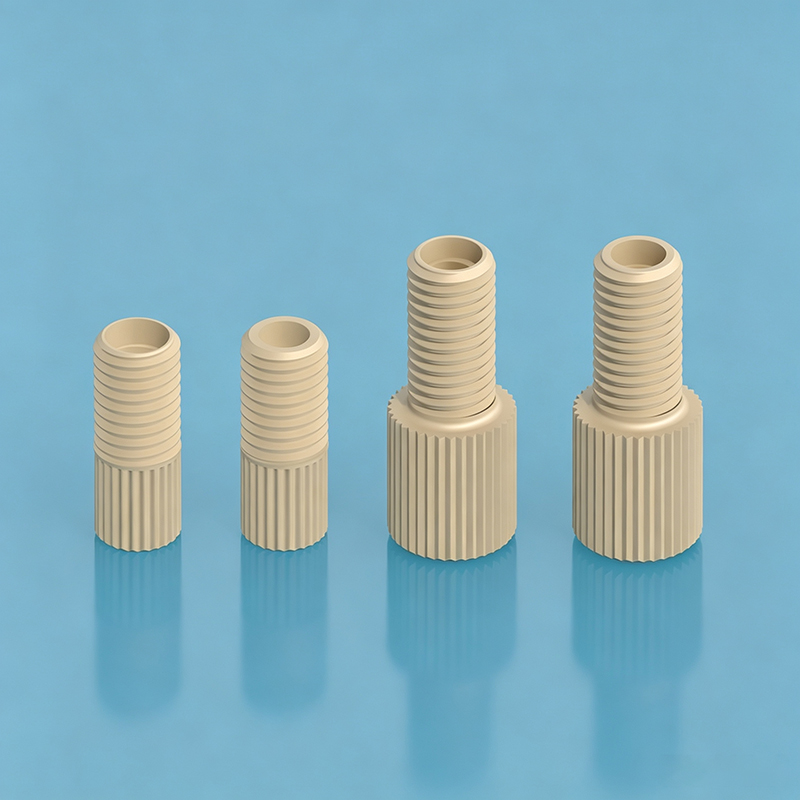

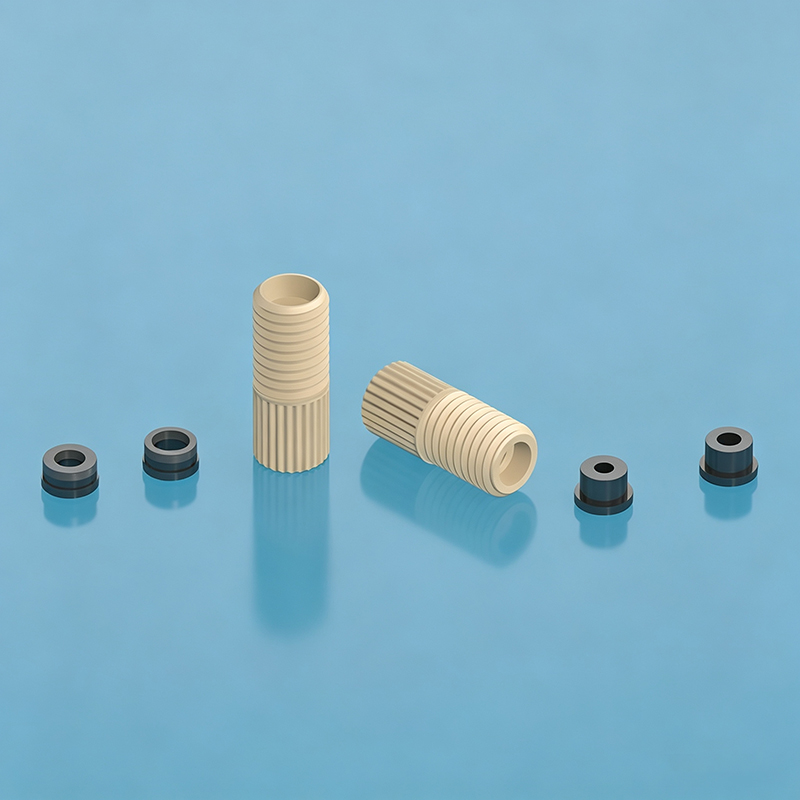

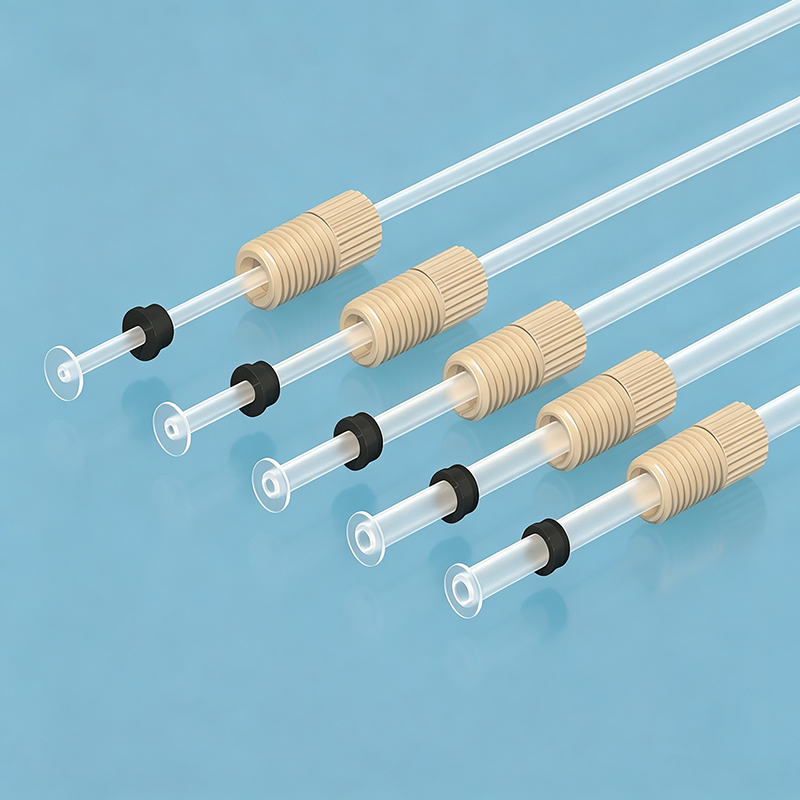

PEEK-FLR is a Flared Fitting machined from virgin PEEK (polyether ether ketone). It is built for low-pressure fluid connections in analytical and laboratory systems where chemical resistance and a clean fluid path matter more than high pressure.

Rated for PEEK (-50 C to +260 C); PPS (-40 C to +200 C); Stainless steel (-196 C to +450 C), it uses 1/4-28UNF, M6, 10-32UNF, 6-40UNF threads and accepts 1.6/2.0/2.5/3.0/3.2 mm OD PTFE/FEP and other semi-rigid tubing. A traditional flat-bottom fitting that keeps the tubing ID unchanged, adds no flow restriction and seals reliably through repeated disassembly. All JiuyuHub PEEK fittings are produced under ISO 9001 control and interchange with common HPLC and analytical fitting standards.

Typical applications

HPLC and UHPLC solvent lines where an inert, metal-free path protects sensitive detectors.
Laboratory automation and OEM analytical instruments that need compact, repeatable fluid paths.
Pharmaceutical and biotech skids for buffer, solvent and sample transfer.
Environmental and water-analysis instrument sampling manifolds.
Low-pressure fluidic prototypes where fast teardown simplifies maintenance.

Selection notes

Match the thread standard (10-32UNF, 1/4-28UNF and others) to your existing ports before ordering; mixed standards need an adapter such as PEEK-ADP or PEEK-FT-S.
PEEK covers most aqueous and organic solvents up to about 260 C; for stronger acids, bases or wider temperature windows choose PPS, PTFE or stainless-steel variants.
Hand-tight fittings need only finger torque. Over-tightening can crack the ferrule or deform the cone; cut a fresh tubing end for a clean reseal.

Frequently asked questions

What tubing does this PEEK fitting accept?

Most models take 1.6/2.0/2.5/3.0/3.2 mm OD semi-rigid tubing such as PTFE, FEP, PEEK or ETFE. The 10-32UNF hand-tight models are sized for 1.6 mm OD.

Can I join different thread standards?

Yes. Use the female-thread adapters (PEEK-FT-S/L/Y/T/4W) or the thread adapter PEEK-ADP to link 10-32UNF, 1/4-28UNF, 5/16-24 or 1/2-20UNF ports.

What are the temperature and pressure limits?

PEEK bodies are rated -50 C to +260 C. Working pressure depends on tubing and thread; for typical 1.6 mm PEEK lines it suits low-pressure analytical duty. Check the datasheet for your exact model.

Are certificates available?

All fittings are made under ISO 9001 QMS. CE, RoHS and FDA documentation is model-dependent and supplied on request.
