| Model | MP230Pro-T |
|---|---|
| Parameters | 6 core parameters: COD, ammonia, TP, TN, nitrate, permanganate index |
| Sample Vessel | Φ16 mm |
| Screen | 4.3-inch color touchscreen |
| Light Source | LED |
| Absorbance Range | 0-3 A |
| Optical Stability | ≤±0.003 A (20 min) |
| Data Transfer | Type-C |
| Operating Environment | 5~40°C, ≤85% non-condensing |
| Battery | 8000 mAh Li-battery |
| Protection | IP65 |
| Dimensions / Weight | 210 × 95 × 52 mm / ~550 g |
| Applications | Water treatment, environmental monitoring, laboratories, food & beverage, aquaculture |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

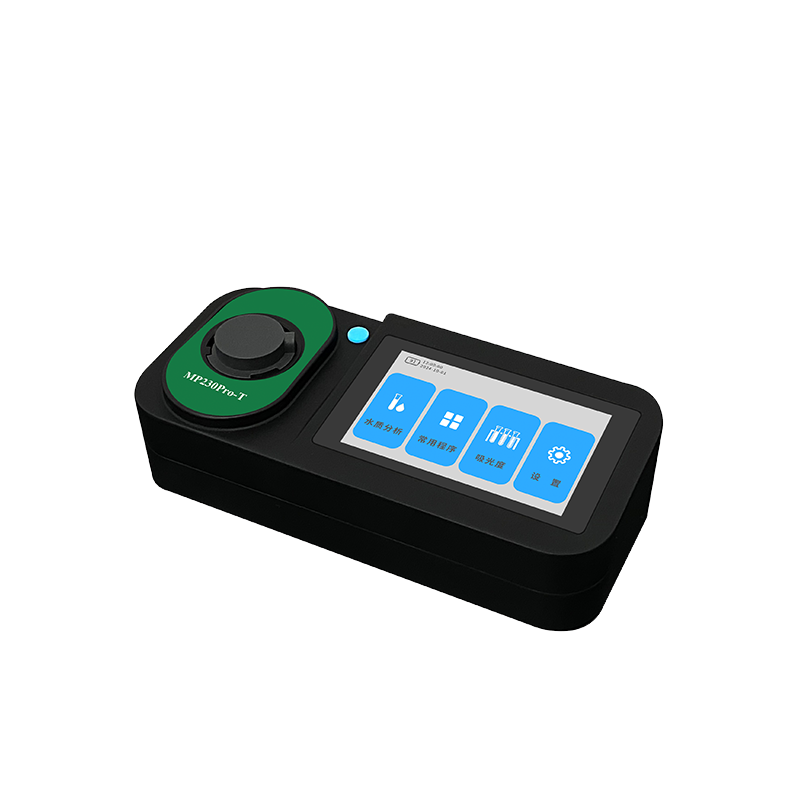

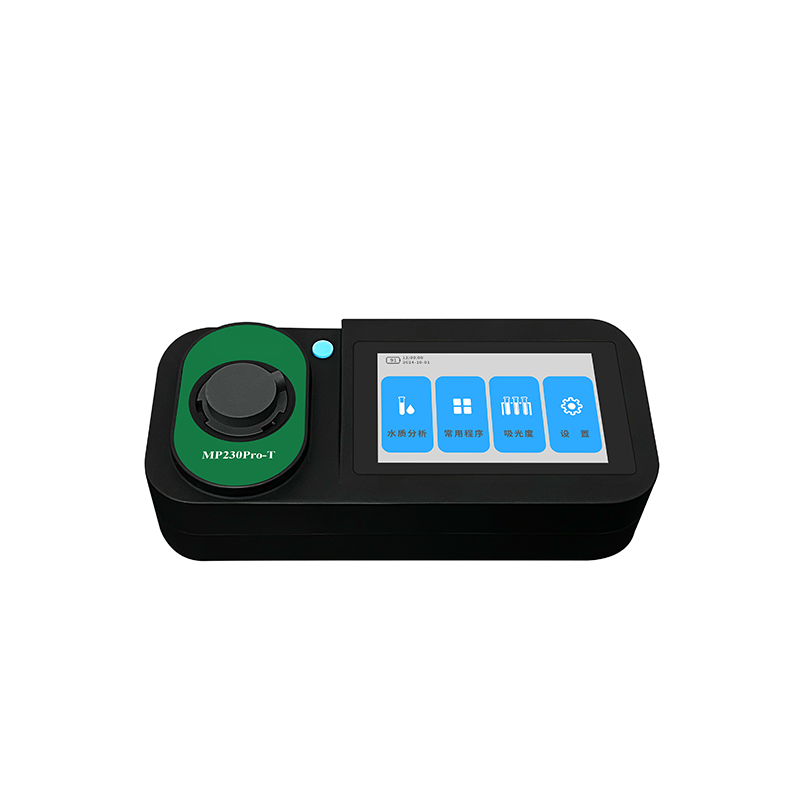

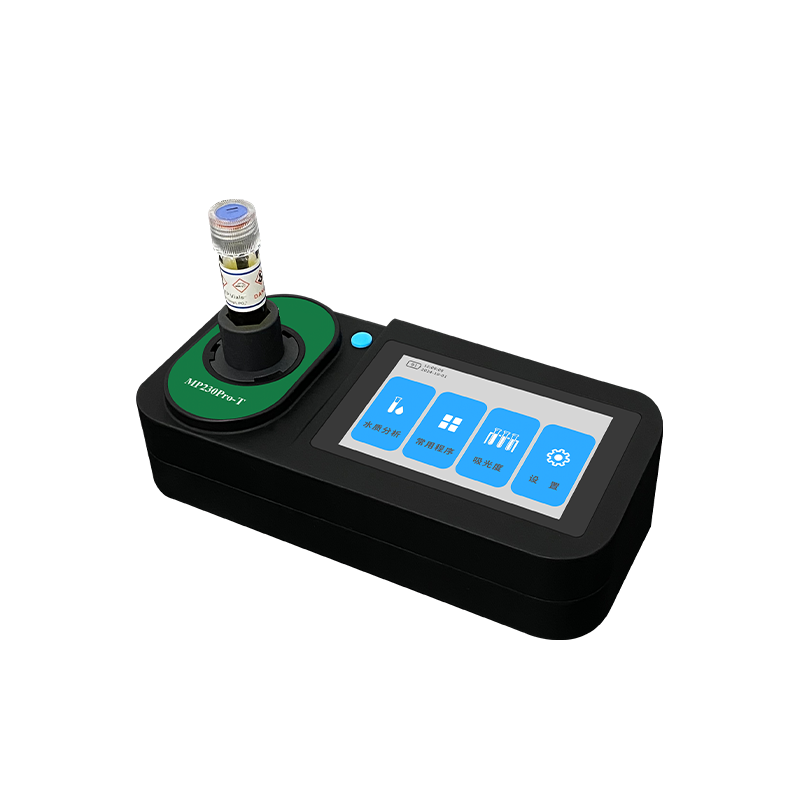

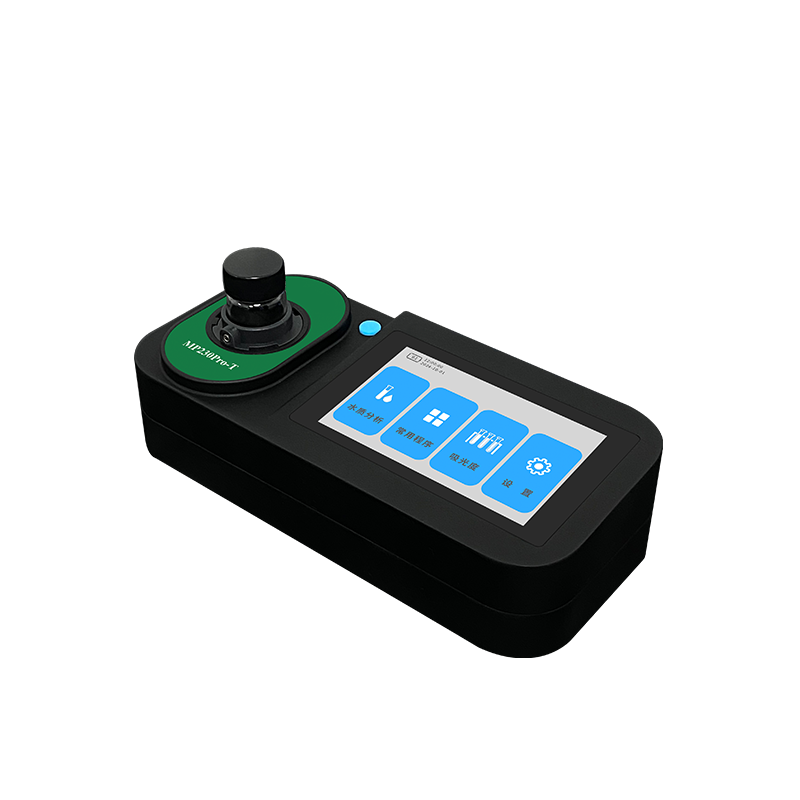

The MP230Pro-T is a wastewater-focused analyzer covering six core parameters: COD, ammonia, total phosphorus, total nitrogen, nitrate and permanganate index. It is designed for on-site rapid testing at wastewater plants, where quick results guide process decisions.
Each test runs on a 4.3-inch colour touchscreen with an LED source over a 0–3 A absorbance range at ≤±0.003 A stability over 20 minutes, reading Φ16 mm vessels. Type-C transfers data, the 8000 mAh battery supports plant rounds, and the IP65 body measures 210 × 95 × 52 mm at about 550 g.
Which six parameters does it cover?
COD, ammonia, total phosphorus, total nitrogen, nitrate and permanganate index — the core set for wastewater process and discharge monitoring.
Does COD need digestion?
Yes — photometric COD (and TP/TN) methods digest the sample first; the MP230Pro-T then reads the digested sample, so a compatible digester is needed.
What vessel does it take?
It reads Φ16 mm vessels, the standard format for COD and nutrient digestion tubes.
Is it built for plant-side work?
Yes — the 8000 mAh battery, IP65 body, 210 × 95 × 52 mm size and about 550 g weight suit daily rounds through a wastewater plant.
MP230Pro-T 是一款面向污水处理的便携分析仪，覆盖 6 项核心参数：COD、氨氮、总磷、总氮、硝酸盐与高锰酸盐指数。专为污水厂现场快速检测设计，快速结果直接指导工艺决策。
每项测试在 4.3 英寸彩色触摸屏上进行，LED 光源在 0–3 A 吸光度量程内、20 分钟稳定性 ≤±0.003 A 的条件下读取 Φ16 mm 比色瓶。数据经 Type-C 传输，8000 mAh 电池支撑厂区巡检，IP65 机身 210 × 95 × 52 mm、重约 550 g。
覆盖哪 6 项参数？
COD、氨氮、总磷、总氮、硝酸盐与高锰酸盐指数——污水工艺与排放监测的核心组合。
COD 需要消解吗？
需要——光度法 COD（以及 TP/TN）方法先消解样品；MP230Pro-T 随后读取消解后样品，因此需配兼容消解仪。
用什么比色瓶？
读取 Φ16 mm 比色瓶，即 COD 与营养盐消解管的标准规格。
为厂区作业而设计吗？
是的——8000 mAh 电池、IP65 机身、210 × 95 × 52 mm 尺寸与约 550 g 重量适合污水处理厂的日常巡检。
MP230Pro-T adalah penganalisis berfokus air limbah yang mencakup enam parameter inti: COD, amonia, fosfor total, nitrogen total, nitrat, dan indeks permanganat. Dirancang untuk uji cepat di lokasi pabrik air limbah, tempat hasil cepat memandu keputusan proses.
Setiap uji berjalan pada layar sentuh warna 4,3 inci dengan sumber LED pada rentang serapan 0–3 A pada stabilitas ≤±0,003 A selama 20 menit, membaca kuvet Φ16 mm. Type-C mentransfer data, baterai 8000 mAh mendukung putaran pabrik, dan bodi IP65 berukuran 210 × 95 × 52 mm dengan berat sekitar 550 g.
Enam parameter apa yang dicakup?
COD, amonia, fosfor total, nitrogen total, nitrat, dan indeks permanganat — set inti untuk pemantauan proses dan pembuangan air limbah.
Apakah COD perlu digesti?
Ya — metode COD (dan TP/TN) fotometrik mendigesti sampel dulu; MP230Pro-T lalu membaca sampel hasil digesti, jadi diperlukan digester yang kompatibel.
Kuvet apa yang digunakan?
Membaca kuvet Φ16 mm, format standar untuk tabung digesti COD dan nutrien.
Dibangun untuk kerja sisi pabrik?
Ya — baterai 8000 mAh, bodi IP65, ukuran 210 × 95 × 52 mm, dan berat sekitar 550 g cocok untuk putaran harian di pabrik air limbah.
MP230Pro-T là máy phân tích hướng nước thải bao phủ sáu thông số cốt lõi: COD, amoniac, tổng phốt pho, tổng nitơ, nitrat và chỉ số pemanganat. Được thiết kế cho thử nghiệm nhanh tại chỗ tại nhà máy nước thải, nơi kết quả nhanh định hướng quyết định quy trình.
Mỗi phép thử chạy trên màn hình cảm ứng màu 4,3 inch với nguồn LED ở dải hấp thụ 0–3 A với độ ổn định ≤±0,003 A trong 20 phút, đọc cuvet Φ16 mm. Type-C truyền dữ liệu, pin 8000 mAh hỗ trợ các lượt kiểm tra nhà máy, thân IP65 kích thước 210 × 95 × 52 mm nặng khoảng 550 g.
Sáu thông số nào được bao phủ?
COD, amoniac, tổng phốt pho, tổng nitơ, nitrat và chỉ số pemanganat — bộ cốt lõi cho giám sát quy trình và xả nước thải.
COD có cần phân hủy không?
Có — phương pháp COD (và TP/TN) quang học phân hủy mẫu trước; MP230Pro-T sau đó đọc mẫu đã phân hủy, nên cần máy phân hủy tương thích.
Dùng cuvet loại nào?
Máy đọc cuvet Φ16 mm, định dạng chuẩn cho ống phân hủy COD và dinh dưỡng.
Có thiết kế cho công việc tại nhà máy?
Có — pin 8000 mAh, thân IP65, kích thước 210 × 95 × 52 mm và trọng lượng khoảng 550 g phù hợp các lượt kiểm tra hàng ngày tại nhà máy nước thải.
MP230Pro-T เป็นเครื่องวิเคราะห์ที่เน้นน้ำเสียครอบคลุมหกพารามิเตอร์หลัก: COD แอมโมเนีย ฟอสฟอรัสรวม ไนโตรเจนรวม ไนเตรต และดัชนีเปอร์แมงกาเนต ออกแบบสำหรับการทดสอบเร็วหน้างานที่โรงบำบัดน้ำเสีย ซึ่งผลเร็วช่วยนำการตัดสินใจกระบวนการ
การทดสอบแต่ละครั้งทำงานบนหน้าจอสัมผัสสี 4.3 นิ้วด้วยแหล่ง LED ในช่วงการดูดกลืน 0–3 A ที่ความเสถียร ≤±0.003 A ใน 20 นาที อ่านคิวเวต Φ16 มม. Type-C ถ่ายโอนข้อมูล แบตเตอรี่ 8000 มิลลิแอมป์ชั่วโมงรองรับรอบโรงงาน และตัว IP65 ขนาด 210 × 95 × 52 มม. หนักประมาณ 550 ก.
ครอบคลุมหกพารามิเตอร์ใด?
COD แอมโมเนีย ฟอสฟอรัสรวม ไนโตรเจนรวม ไนเตรต และดัชนีเปอร์แมงกาเนต — ชุดหลักสำหรับการเฝ้าระวังกระบวนการและปล่อยน้ำเสีย
COD ต้องย่อยสลายหรือไม่?
ใช่ — วิธี COD (และ TP/TN) แบบวัดแสงย่อยสลายตัวอย่างก่อน MP230Pro-T อ่านตัวอย่างที่ย่อยแล้ว จึงต้องใช้เครื่องย่อยสลายที่เข้ากันได้
ใช้คิวเวตแบบใด?
อ่านคิวเวต Φ16 มม. รูปแบบมาตรฐานสำหรับหลอดย่อยสลาย COD และธาตุอาหาร
ออกแบบสำหรับงานหน้าโรงงานหรือไม่?
ใช่ — แบตเตอรี่ 8000 มิลลิแอมป์ชั่วโมง ตัว IP65 ขนาด 210 × 95 × 52 มม. และน้ำหนักประมาณ 550 ก. เหมาะกับรอบตรวจประจำวันที่โรงบำบัดน้ำเสีย
MP230Pro-T ialah penganalisis fokus air sisa yang meliputi enam parameter teras: COD, ammonia, fosforus jumlah, nitrogen jumlah, nitrat dan indeks permanganat. Direka untuk ujian pantas di tapak di loji air sisa, tempat keputusan proses dipandu hasil pantas.
Setiap ujian berjalan pada skrin sentuh warna 4.3 inci dengan sumber LED pada julat serapan 0–3 A pada kestabilan ≤±0.003 A selama 20 minit, membaca kuvet Φ16 mm. Type-C memindahkan data, bateri 8000 mAh menyokong pusingan loji, dan badan IP65 berukuran 210 × 95 × 52 mm pada kira-kira 550 g.
Enam parameter apakah yang diliputi?
COD, ammonia, fosforus jumlah, nitrogen jumlah, nitrat dan indeks permanganat — set teras untuk pemantauan proses dan pelepasan air sisa.
Adakah COD perlu digesti?
Ya — kaedah COD (dan TP/TN) fotometrik mendigesti sampel dahulu; MP230Pro-T kemudian membaca sampel hasil digesti, jadi digester serasi diperlukan.
Kuvet apakah yang digunakan?
Ia membaca kuvet Φ16 mm, format standard untuk tiub digesti COD dan nutrien.
Dibina untuk kerja sisi loji?
Ya — bateri 8000 mAh, badan IP65, saiz 210 × 95 × 52 mm dan berat kira-kira 550 g sesuai untuk pusingan harian di loji air sisa.
Ang MP230Pro-T ay isang wastewater-focused analyzer na sumasaklaw sa anim na core parameters: COD, ammonia, total phosphorus, total nitrogen, nitrate at permanganate index. Ito ay idinisenyo para sa on-site rapid testing sa wastewater plants, kung saan ang mabilis na resulta ay gumagabay sa mga desisyon sa proseso.
Ang bawat pagsubok ay tumatakbo sa 4.3-inch colour touchscreen na may LED source sa 0–3 A absorbance range sa ≤±0.003 A stability sa loob ng 20 minuto, nagbabasa ng Φ16 mm vessels. Ang Type-C ay naglilipat ng data, ang 8000 mAh battery ay sumusuporta sa plant rounds, at ang IP65 body ay may sukat na 210 × 95 × 52 mm sa humigit-kumulang 550 g.
Aling anim na parameters ang sinasaklaw?
COD, ammonia, total phosphorus, total nitrogen, nitrate at permanganate index — ang core set para sa wastewater process at discharge monitoring.
Kailangan bang i-digest ang COD?
Oo — ang photometric COD (at TP/TN) methods ay nagdi-digest muna ng sampol; binabasa ng MP230Pro-T ang digested sample, kaya kailangan ng compatible digester.
Anong vessel ang ginagamit nito?
Nagbabasa ito ng Φ16 mm vessels, ang standard na format para sa COD at nutrient digestion tubes.
Ginawa ba ito para sa plant-side work?
Oo — ang 8000 mAh battery, IP65 body, 210 × 95 × 52 mm size at humigit-kumulang 550 g na timbang ay angkop sa pang-araw-araw na rounds sa wastewater plant.
