| Control Method | Keyboard control / Communication control (RS485) / Foot pedal control / Analog control |
|---|---|

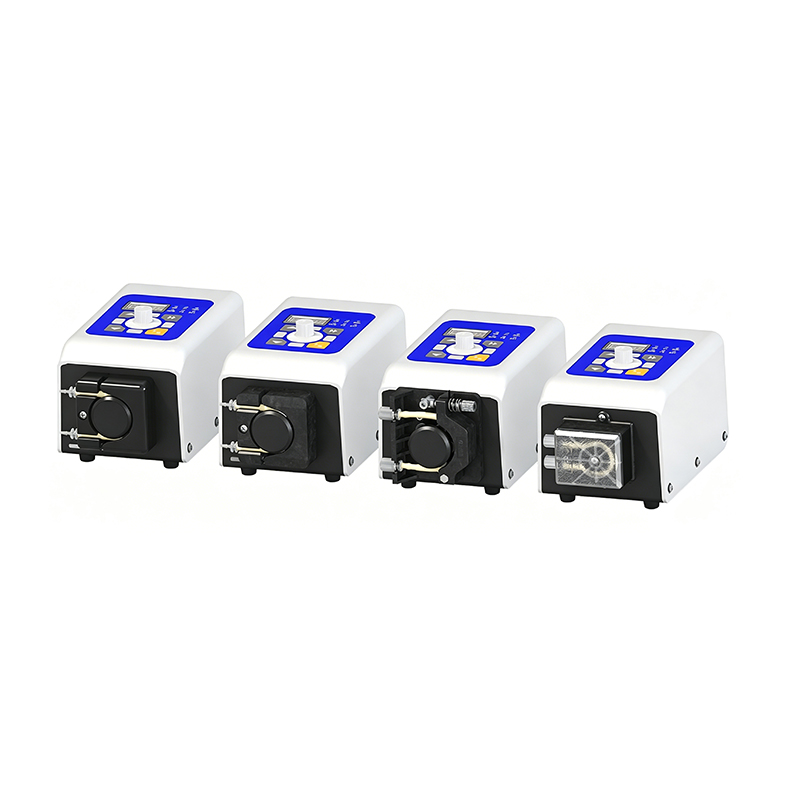

| Compatible Pump Head | RZ1030/RZ1030B/RZ01B/RZ02 |
| Compatible Pump Tubing | ID (0.64-3.2mm) wall (0.8-1.6mm) |
| Speed Range / Max Reference Flow | ≤400rpm / 236ml/min" |
| Note | 1. Test data above is at 20°C, pure water, no pressure; actual use depends on medium, conditions, temp/humidity, voltage; for reference only |
| Industries Served | Food processing, pharmaceuticals, chemical and laboratory research, agriculture and water treatment. Specific applications include: dispensing, sampling, metering, filtration, fermentation. If it is fluid, a peristaltic pump can pump it. In many cases, peristaltic pumps are the ideal choice for pumping abrasive or corrosive fluids. |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

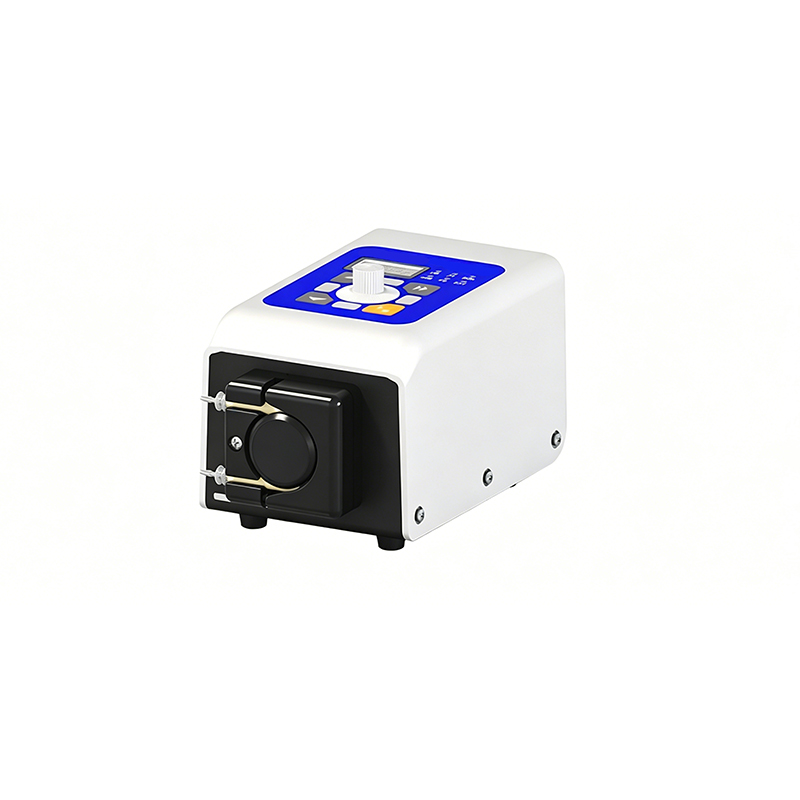

LM40B ialah pam peristaltik jenis kotak padat yang ditala untuk pemindahan bendalir mikro di bawah 240 ml/min. Ia berpasangan dengan kepala siri RZ dan menyokong kawalan papan kekunci, RS485, pedal kaki dan analog, sesuai untuk dispensing reagen instrumen perubatan dan binaan peranti mudah alih.

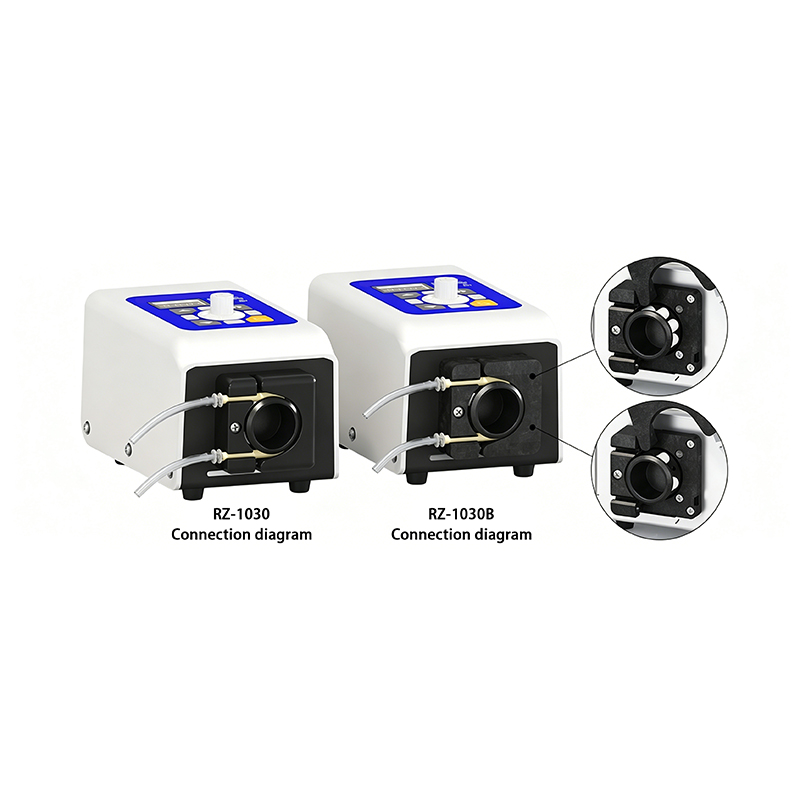

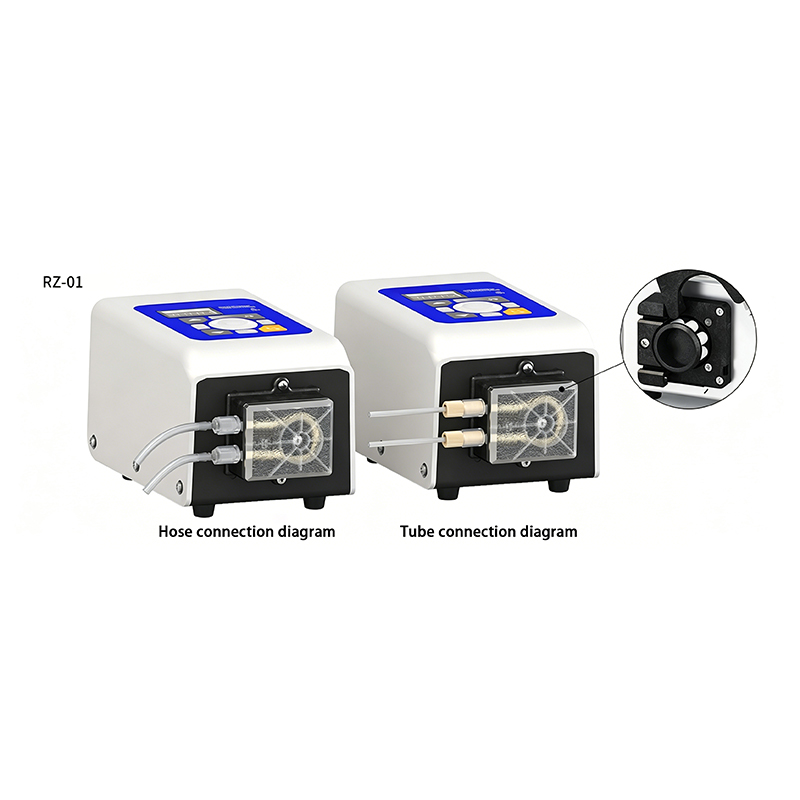

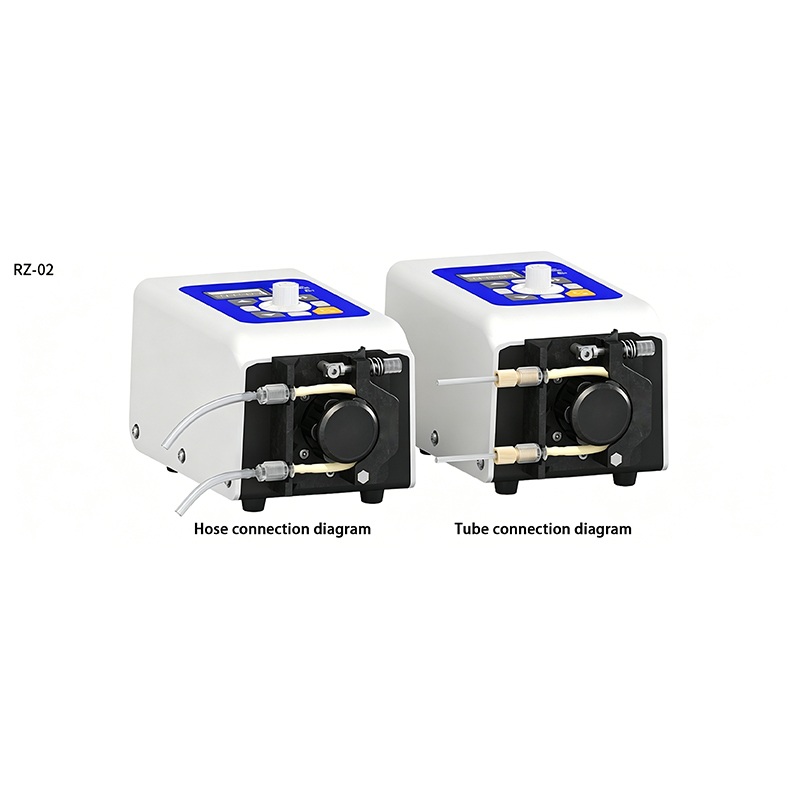

Menggerakkan kepala RZ1030, RZ1030B, RZ01B dan RZ02 serta menerima tiub dengan ID 0.64-3.2 mm dan dinding 0.8-1.6 mm. Kelajuan mencecah 400 rpm dengan kadar alir rujukan 236 ml/min. Kuasa DC24V±10% pada 20 W, IP31, berat 1.45 kg tanpa kepala pam.
Berapa kadar alir LM40B?
Hingga kira-kira 236 ml/min sebagai rujukan, dengan kelajuan sehingga 400 rpm.
Kepala pam dan tiub apa yang sesuai?
Menggerakkan kepala RZ1030, RZ1030B, RZ01B dan RZ02 serta menerima tiub ID 0.64-3.2 mm, dinding 0.8-1.6 mm.
Bagaimana mengawalnya?

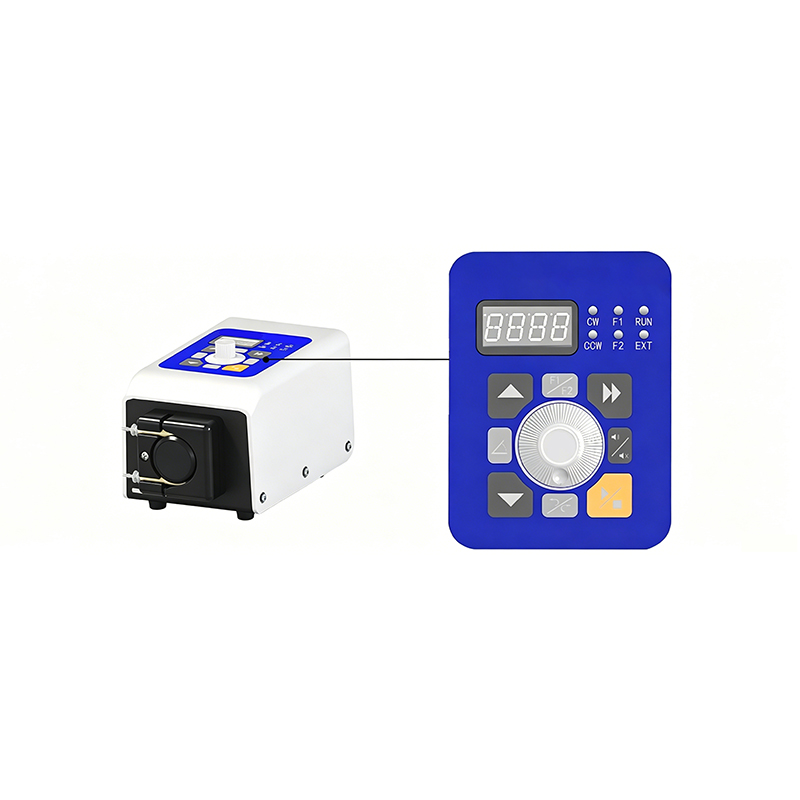

Disokong papan kekunci, komunikasi RS485, pedal kaki dan input analog.
Apakah rating elektrik dan persekitaran?
DC24V±10% pada 20 W, 0-40℃ dan RH bawah 80%, standard IP31.
