| Compatible Tubing | For tubing with 1.0-6.4mm inner diameter |
|---|---|

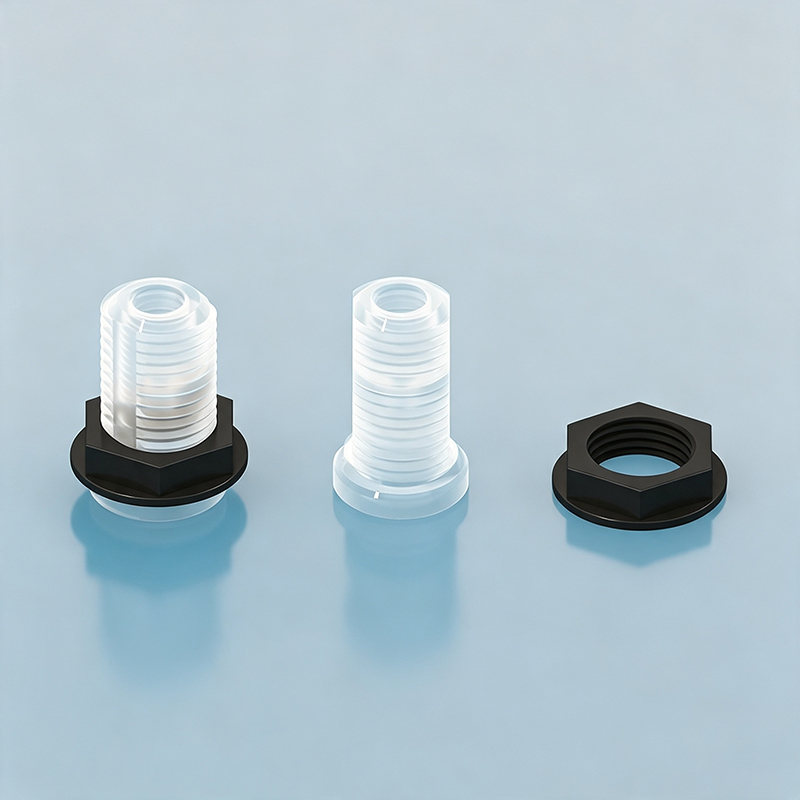

| Key Specification | 2-piece bulkhead fitting, flat anti-rotation, compact. |
| Description | Lower profile than 3-piece version. |

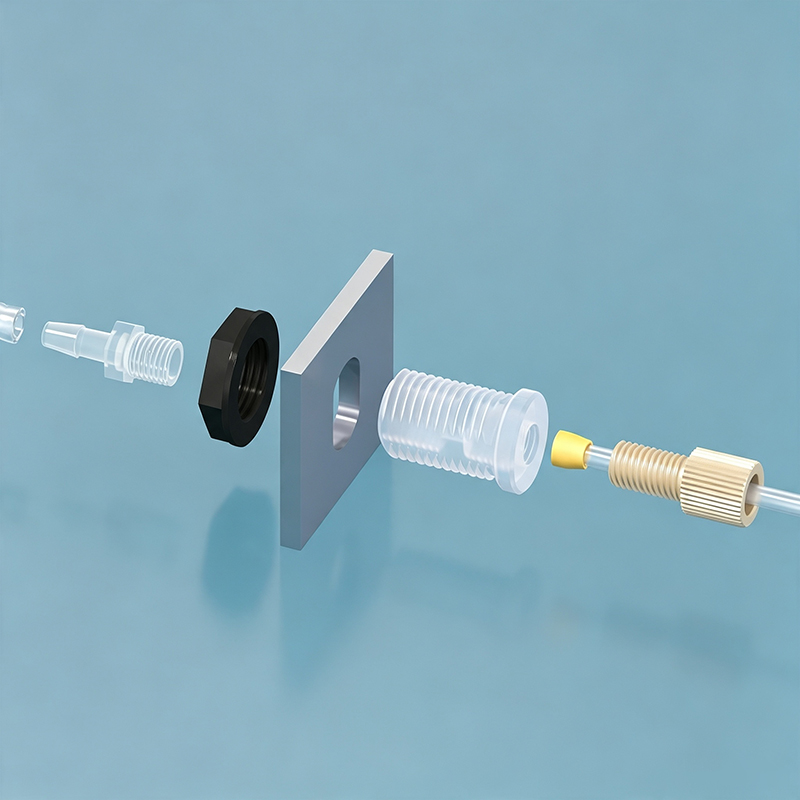

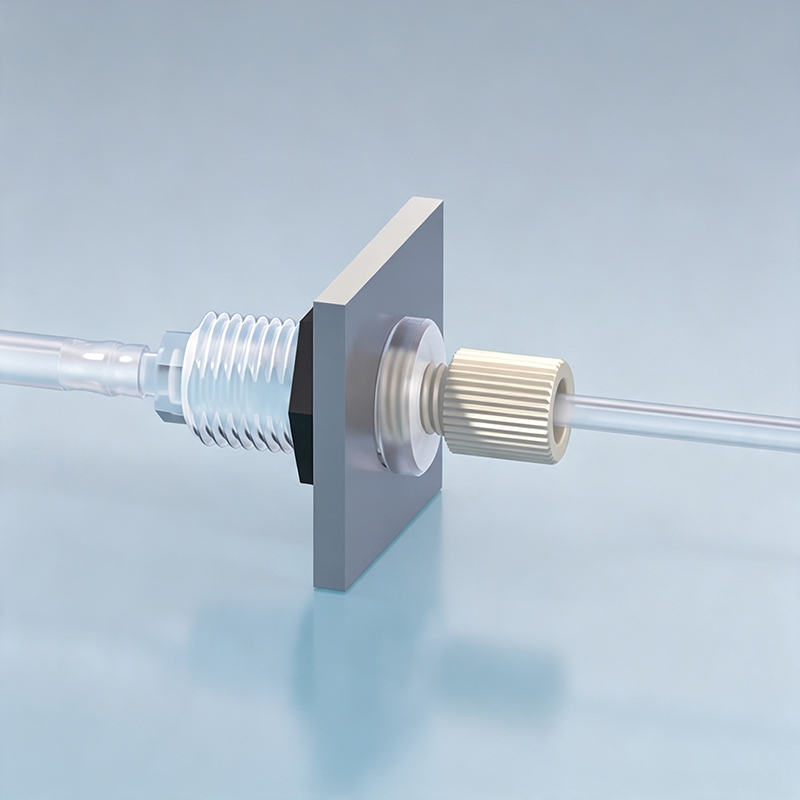

| Features | Male thread optimized with flat surfaces on both sides; anti-rotation achieved by a flat limiting design — the mounting hole is changed from round to a rounded rectangle, and the hole mates with the flats to effectively limit rotation; designed to pass through the equipment housing and connect internal tubing to the outside (panel must be pre-drilled); male-female thread conversion for leak-free connection with rigid/soft tubing systems |

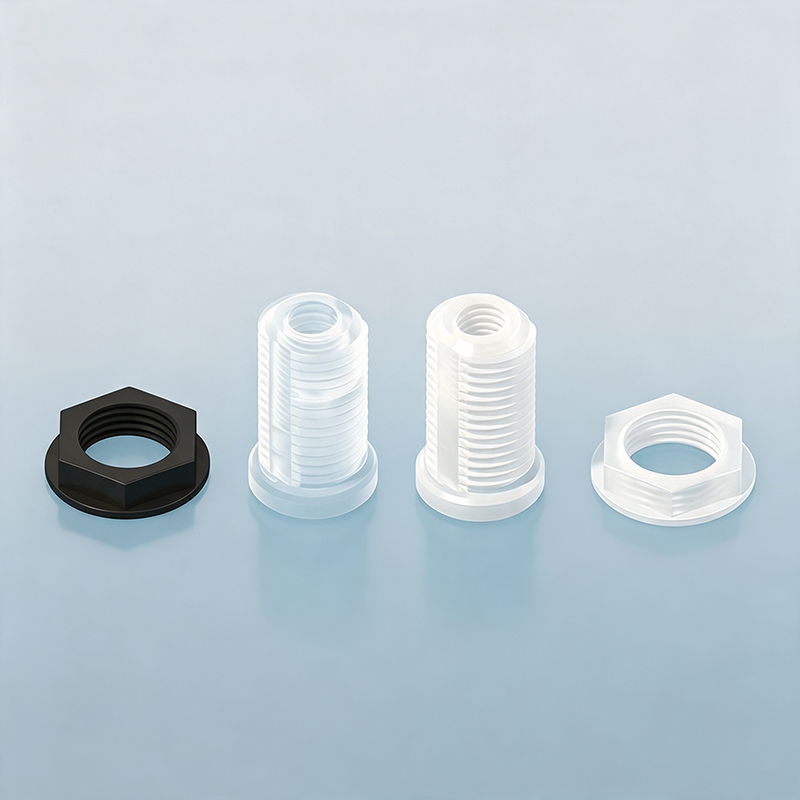

| Material | Fitting optional in PP, PTFE — non-toxic, odorless, heat resistant, resistant to chemicals and organic solvents; matching fine-thread thin nut optional in PPS, PTFE |
| Compatible Fitting | Standard 1/4-28UNF flat-bottom thread fitting (pitch: 0.907mm) |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |
FTG-BH-2P 是一款穿板接头（两件式）。平面防转设计，比三件式更矮。
螺纹规格: Standard 1/4-28UNF flat-bottom thread fitting (pitch: 0.907mm) 适用管径: For tubing with 1.0-6.4mm inner diameter
支持哪些螺纹标准？
多数接头采用 1/4-28UNF；部分增加 M6、M8、M10、10-32UNF 或 6-40UNF。订购前请核对各型号的规格表。
能否连接不同管径？
可以。使用异径接头或硬-软管适配器、多通接头来连接不同直径。
这些接头耐化学腐蚀吗？
耐。PP、PTFE、PEEK、PPS 本体可抵抗常见溶剂；请针对具体型号确认介质兼容性。
是否提供安装工具？
提供。扭矩手动拧紧工具套件与 PEEK/PTFE 切管器作为配件，确保密封可靠。
