| Thread Specification | 1/4-28UNF, M8, M10 male thread |
|---|---|
| Compatible Tubing | For tubing with 1.0-8.7mm inner diameter |
| Features | Connects tubing to any threaded flat-bottom receiving port. Simply screw the fitting into the port and slide the tubing onto the barbed end to create a reliable low-pressure connection |
| Thread Pitch | 1/4-28UNF: 0.907 mm; M8: 1.25 mm |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

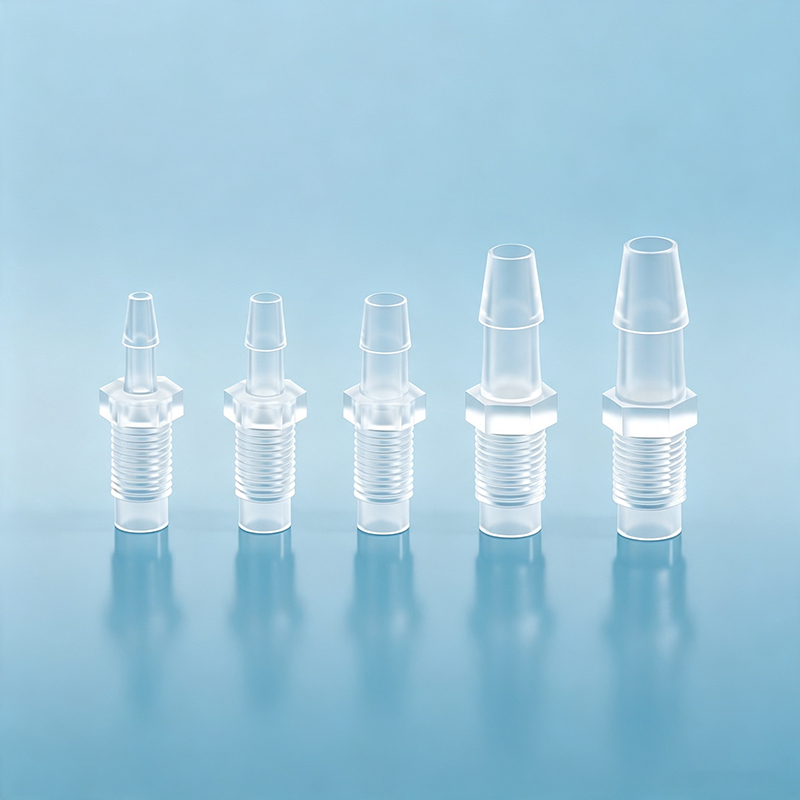

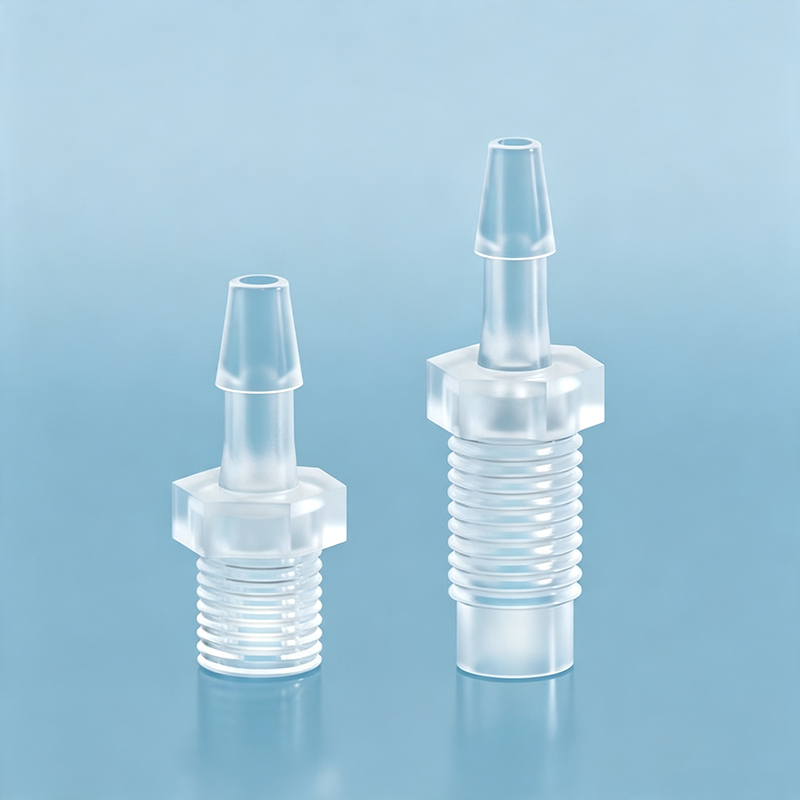

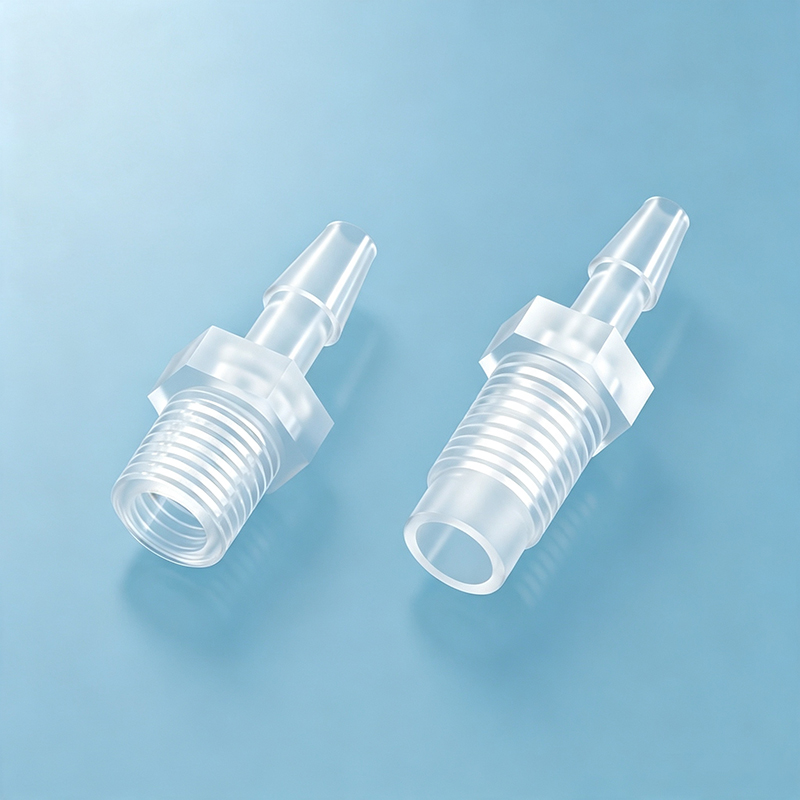

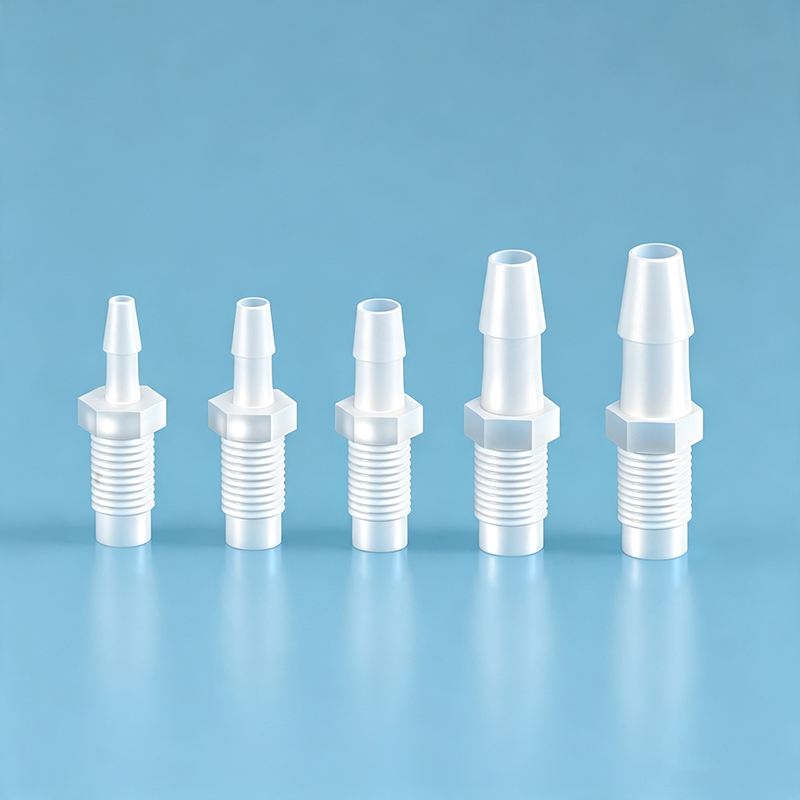

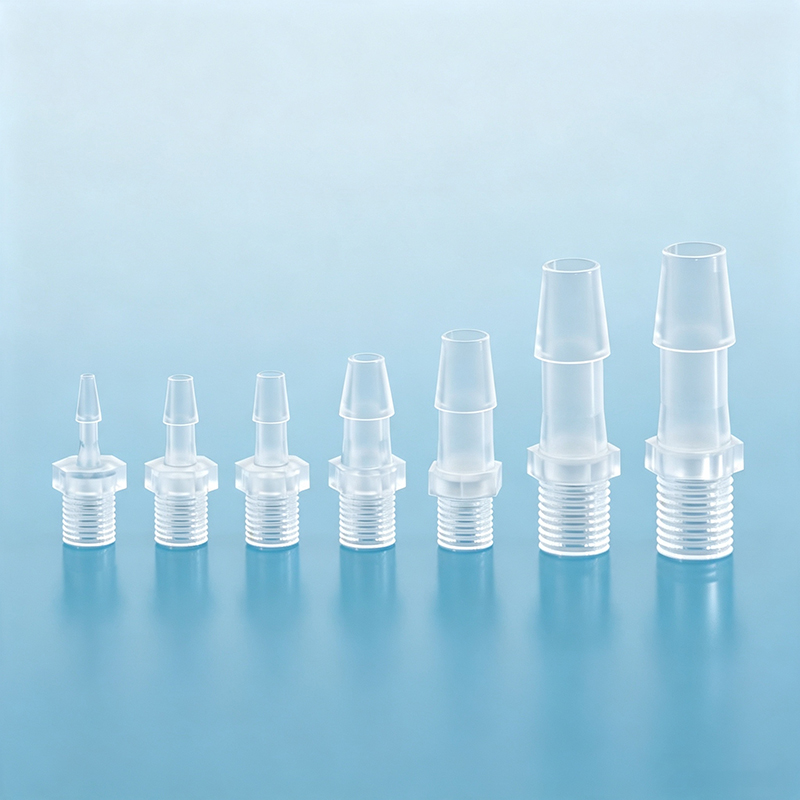

FTG-EXT-STR 是一款外螺纹直通接头。拧入任意螺纹平底接口；倒刺端固定管材。
螺纹规格: 1/4-28UNF, M8, M10 male thread 适用管径: For tubing with 1.0-8.7mm inner diameter
支持哪些螺纹标准？
多数接头采用 1/4-28UNF；部分增加 M6、M8、M10、10-32UNF 或 6-40UNF。订购前请核对各型号的规格表。
能否连接不同管径？
可以。使用异径接头或硬-软管适配器、多通接头来连接不同直径。
这些接头耐化学腐蚀吗？
耐。PP、PTFE、PEEK、PPS 本体可抵抗常见溶剂；请针对具体型号确认介质兼容性。
是否提供安装工具？
提供。扭矩手动拧紧工具套件与 PEEK/PTFE 切管器作为配件，确保密封可靠。
