| Flow Path Configuration | 6/8/10/12/16-channel valve head, 1.5/2.0/3.0mm flow path |
|---|---|
| Serial Communication Protocol | RS232/RS485, customizable CAN communication |
| Multi-protocol Control | Default custom protocol; compatible with ASCII/Modbus |
| Number of Channels | 6/8/10/12/16 |
| Flow Channel Diameter (mm) | 2.0/1.5/3.0 |
| Rotor Groove Volume (ul) | 34.7/20.1/92.6 |
| Port-to-Port Volume (ul) | 106.8/61.1/254 |
| Port Thread (UNF) | 1/4-28 / 1/4-28 / 5/16-24, 1/4-28 |
| Wetted Material | Alumina ceramic |
| Valve Head Liquid Temperature | Max test temperature 100°C |
| Full Rotation Switching Time | 4 s/revolution (all valve heads) |
| Max Driving Force / Torque | 8 N/m |
| Communication Rate | RS232/RS485: 9600/19200/38400/57600/115200 bps |
| Applicable Power Supply | DC24V/3A |
| Device Weight | 0.85 kg |
| Air Pressure | 0~0.6MPa / water pressure: 0~1.0MPa |
| Temperature | 0°C to +50°C humidity: ≤80% non-condensing |
| Fluid contacts only two parts in valve | Alumina ceramic valve core stator and rotor; provides completely non-metallic, corrosion-resistant, high-temp-resistant, wear-resistant channel |
| Applications | Laboratory automation, analytical instruments, pharmaceutical, biotech, OEM |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

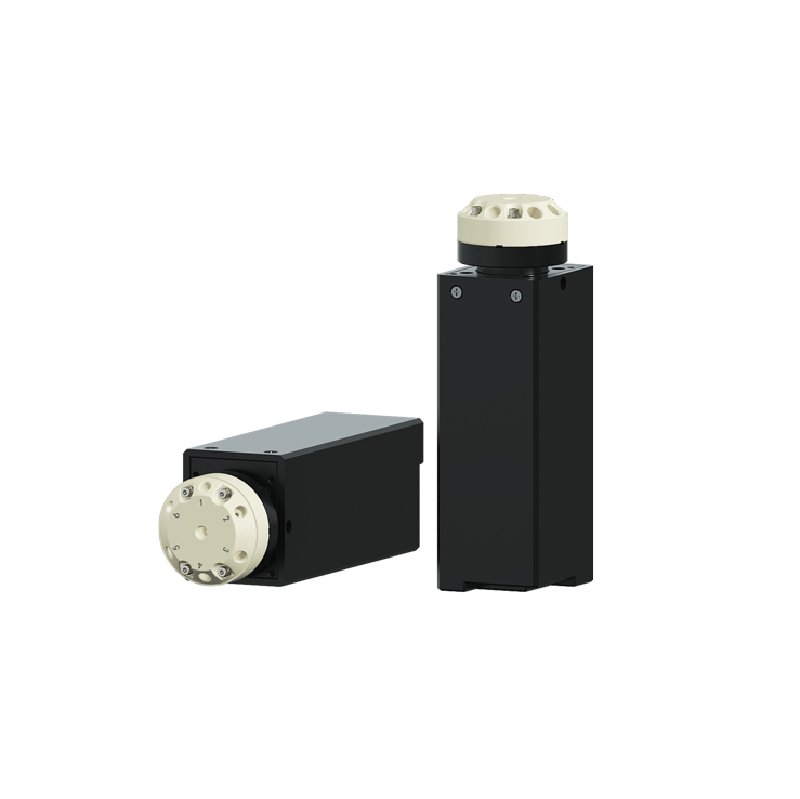

大孔径 SV07M 是一款围绕更宽流道设计的多通道切换阀。陶瓷转子在陶瓷定子内转动，通过转子沟槽将中心端口与选定出口连通。液体仅接触这两个陶瓷零件，因此流路呈化学惰性且不含金属。

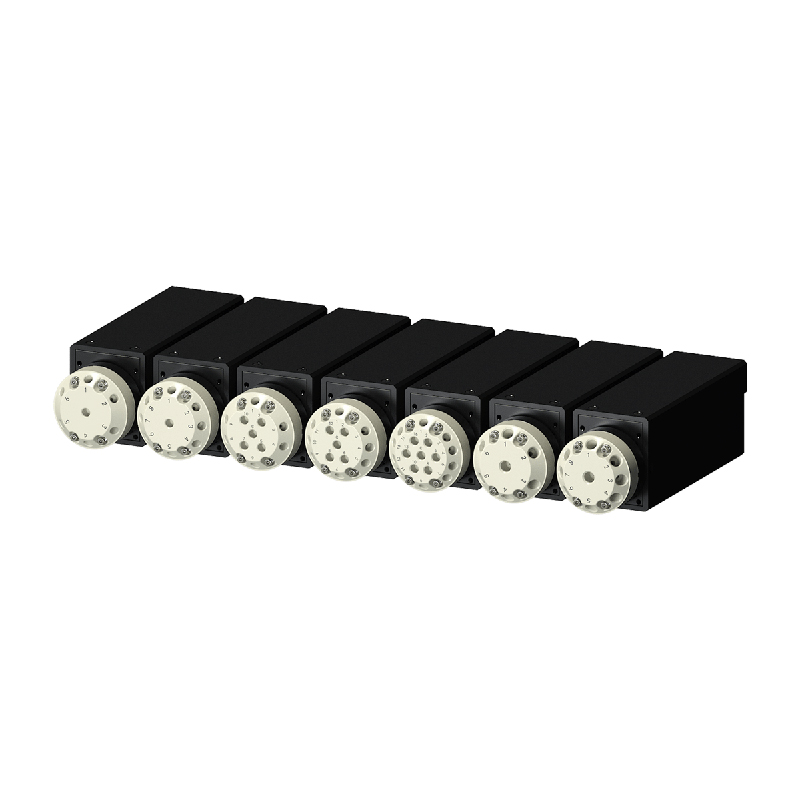

共 3 组阀头，流道分别为 2.0 mm、1.5 mm 与 3.0 mm，通道数 6 至 16。端口间容积从 61.1 微升至 254 微升，远高于窄流道阀头。取舍很直接：流道越宽，黏稠或含颗粒液体走得越快，但端口之间携带的残液也越多。
有哪些通道数与孔径可选？
共 3 组阀头：2.0 mm 流道对应 6/8/10/12 通道，1.5 mm 对应 16 通道，3.0 mm 对应 6/8 通道。端口间容积分别为 106.8、61.1 与 254 微升。
什么时候该选大孔径？
当液体黏稠、含悬浮颗粒或需要快速输送时，选宽流道。窄流道阀头则适合痕量分析——此时残留比速度更重要。
该阀可处理哪些液体？
液体仅接触氧化铝陶瓷，因此在 100 摄氏度限值内可使用强腐蚀性试剂与高纯水。请针对具体介质确认密封件兼容性。
能否脱离上位机运行？
可以。RS232 或 RS485 串口指令可直接驱动，PLC 也可通过 Modbus 控制。ASCII 与 Modbus 在同一硬件上可用。
