| Model | MP5300 |
|---|---|
| Design | Integrated all-in-one (digestion + colorimetric + electrode built-in) |
| Dimensions / Weight | 480 × 215 × 218 mm / ~11 kg |
| Digester | Built-in dual-zone 8-hole digester |
| Digestion Temperature Range | Room temperature ~ 200°C |
| Built-in Digestion Programs | CODcr (2 h), CODcr (fast), CODMn, total phosphorus, total nitrogen, urea, custom |
| Over-temperature Protection | ≥200°C auto power-off |
| Heating Power | 115W × 2 |
| Screen | 7-inch color touchscreen |
| Language | Chinese / English |
| Light Source | LED |
| Absorbance Range | 0-3 A |
| Optical Stability | ≤±0.003 A (20 min) |
| Printer | Built-in printer |
| Electrode Options | pH/ORP, conductivity, dissolved oxygen, COD, turbidity, suspended solids, chlorophyll, blue-green algae, etc. |
| Data Transfer | Type-C |
| Battery Capacity | 24V/22.5Ah lithium battery |
| Charging | AC 220V |
| Operating Environment | Temperature 5~40°C, relative humidity ≤85% |
| Low-Range COD | CODcr 0.7-40 mg/L |
| User-defined Curves | Supported |
| Sample Vessels | Φ16 mm, Φ25 mm |
| Features | Same as MP5200 plus low-range COD and pre-made reagent markers (TP, TN) |
| Applications | Clean water samples: drinking water, surface water, groundwater |
| Certifications | Manufactured under ISO 9001 QMS · CE/RoHS/FDA compliance varies by model (certificates available upon request) |

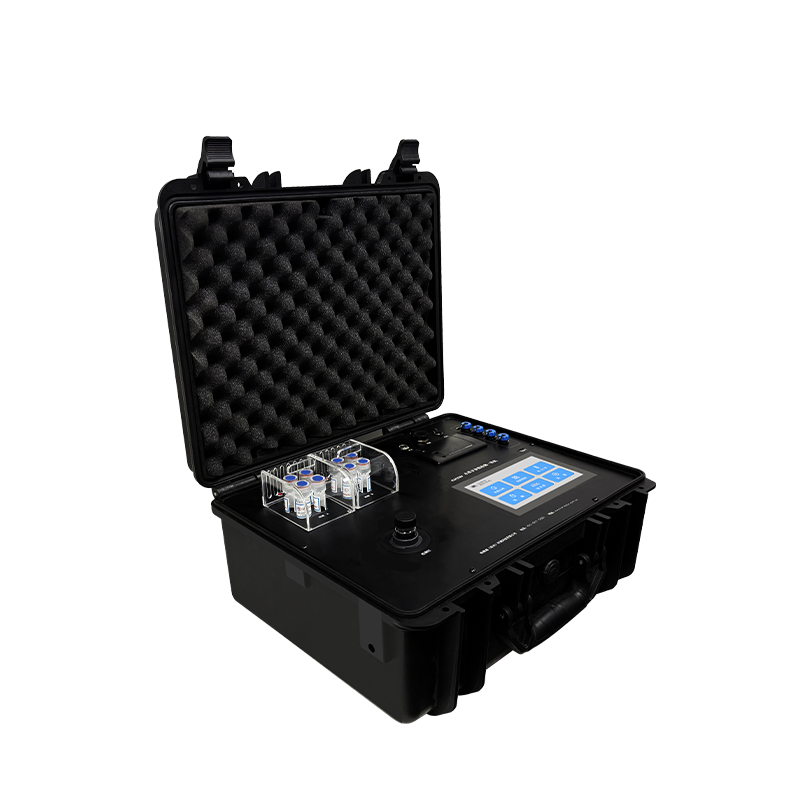

The MP5300 is a multi-parameter water quality analyzer specialized in low-range COD. Built on the dual-zone 8-hole digester and colorimetric photometer platform, it measures CODcr from 0.7 to 40 mg/L for clean water samples including drinking water, surface water and groundwater.
Built-in programs digest CODcr (2 h), CODcr (fast), CODMn, total phosphorus and total nitrogen; pre-made reagent markers for total phosphorus and total nitrogen reduce manual preparation. Optional electrodes add pH, ORP, conductivity, dissolved oxygen, turbidity and suspended solids on the same platform. A 7-inch touchscreen, built-in printer and Type-C export complete the workflow.
What makes the MP5300 different from a standard COD analyzer?
Its colorimetric channel is calibrated for CODcr from 0.7 to 40 mg/L, so clean water samples are measured directly instead of being diluted to fit a high-range method.
Does it still digest total phosphorus and total nitrogen?
Yes. Built-in programs cover CODcr (2 h), CODcr (fast), CODMn, total phosphorus and total nitrogen, and pre-made reagent markers reduce preparation.
Can pH, conductivity or dissolved oxygen electrodes be attached?
Yes. pH/ORP, conductivity, dissolved oxygen, turbidity and suspended-solids electrodes connect to the same instrument beside the photometric channels.
Where does the MP5300 fit best in a water-supply workflow?
Routine COD checks on drinking water, surface water and groundwater are digested, measured, printed and exported on one portable instrument, with no samples sent away.
MP5300 是一款专攻低量程 COD 的多参数水质分析仪：在双区 8 孔消解器与比色光度计平台上，可测量 0.7–40 mg/L 的 CODcr，这一量程专为饮用水、地表水和地下水等洁净水样品而设。
内置程序可消解 CODcr（2 h）、CODcr（快速）、CODMn、总磷和总氮样品；总磷、总氮的预置试剂标记可减少手工配制。可选电极可在同一平台上扩展 pH、ORP、电导率、溶解氧、浊度和悬浮物；7 英寸触摸屏、内置打印机与 Type-C 导出使流程完整。
MP5300 与常规 COD 分析仪有何不同？
其比色通道针对 0.7–40 mg/L 的 CODcr 校准，洁净水样品可直接测量，无需稀释去迁就高量程方法。
它还能消解总磷与总氮吗？
可以。内置程序涵盖 CODcr（2 h）、CODcr（快速）、CODMn、总磷和总氮；总磷、总氮预置试剂标记可减少试剂配制工作。
能否加装 pH、电导率或溶解氧电极？
可以。pH/ORP、电导率、溶解氧、浊度与悬浮物电极可与同一台仪器连接，与比色通道并列使用。
MP5300 在供水检测流程中最适合放在哪个环节？
在饮用水、地表水和地下水检测中，常规 COD 检查可在这一台便携仪器上完成消解、测量、打印与导出，无需外送样品。
MP5300 adalah penganalisis kualitas air multi-parameter yang dikhususkan untuk COD rentang rendah. Dibangun di atas platform pencerna 8 lubang dua zona dan fotometer kolorimetri, alat ini mengukur CODcr dari 0.7 hingga 40 mg/L, rentang kerja untuk sampel air bersih seperti air minum, air permukaan, dan air tanah.
Program bawaan mencerna sampel CODcr (2 h), CODcr (fast), CODMn, fosfor total, dan nitrogen total; penanda reagen siap pakai untuk fosfor total dan nitrogen total mengurangi penyiapan manual. Elektroda opsional menambah pH, ORP, konduktivitas, oksigen terlarut, kekeruhan, dan padatan tersuspensi pada platform yang sama; layar sentuh 7 inci, printer internal, dan ekspor Type-C melengkapi alur kerja.
Apa bedanya MP5300 dengan penganalisis COD standar?
Kanal kolorimetrinya dikalibrasi untuk CODcr 0.7–40 mg/L, sehingga sampel air bersih diukur langsung tanpa pengenceran agar cocok dengan metode rentang tinggi.
Apakah MP5300 tetap dapat mencerna fosfor total dan nitrogen total?
Ya. Program bawaan mencakup CODcr (2 h), CODcr (fast), CODMn, fosfor total, dan nitrogen total; penanda reagen siap pakai mengurangi penyiapan reagen.
Bisakah elektroda pH, konduktivitas, atau oksigen terlarut dipasang?
Bisa. Elektroda pH/ORP, konduktivitas, oksigen terlarut, kekeruhan, dan padatan tersuspensi terhubung ke instrumen yang sama di samping kanal fotometri.
Di bagian mana MP5300 paling cocok dalam alur kerja penyediaan air?
Pada program air minum, air permukaan, dan air tanah, pemeriksaan COD rutin dicerna, diukur, dicetak, dan diekspor pada satu instrumen portabel tanpa mengirim sampel keluar.
MP5300 là máy phân tích chất lượng nước đa thông số chuyên đo COD dải thấp. Xây dựng trên nền bộ phân hủy 8 lỗ hai vùng và máy đo màu quang phổ, máy đo CODcr từ 0.7 đến 40 mg/L, dải làm việc dành cho mẫu nước sạch gồm nước uống, nước mặt và nước ngầm.
Chương trình tích hợp phân hủy CODcr (2 h), CODcr (nhanh), CODMn, tổng phốt pho và tổng nitơ; bút chỉ thị hóa chất pha sẵn cho tổng phốt pho và tổng nitơ giảm khâu chuẩn bị thủ công. Điện cực tùy chọn bổ sung pH, ORP, độ dẫn điện, oxy hòa tan, độ đục và chất rắn lơ lửng trên cùng nền tảng; màn hình cảm ứng 7 inch, máy in tích hợp và xuất dữ liệu Type-C hoàn chỉnh quy trình.
MP5300 khác máy phân tích COD tiêu chuẩn ở điểm nào?
Kênh đo màu được hiệu chuẩn cho CODcr 0.7–40 mg/L, nên mẫu nước sạch được đo trực tiếp, không phải pha loãng để khớp phương pháp dải cao.
Máy vẫn phân hủy được tổng phốt pho và tổng nitơ chứ?
Được. Chương trình tích hợp gồm CODcr (2 h), CODcr (nhanh), CODMn, tổng phốt pho và tổng nitơ; bút chỉ thị pha sẵn giúp giảm khâu chuẩn bị hóa chất.
Có thể gắn điện cực pH, độ dẫn hoặc oxy hòa tan không?
Có. Điện cực pH/ORP, độ dẫn điện, oxy hòa tan, độ đục và chất rắn lơ lửng kết nối cùng máy bên cạnh kênh đo quang.
MP5300 phù hợp nhất ở khâu nào trong quy trình cấp nước?
Trong các chương trình nước uống, nước mặt và nước ngầm, kiểm tra COD định kỳ được phân hủy, đo, in và xuất trên một máy xách tay, không cần gửi mẫu đi nơi khác.
MP5300 คือเครื่องวิเคราะห์คุณภาพน้ำหลายพารามิเตอร์ที่เชี่ยวชาญการวัด COD ช่วงต่ำ สร้างบนแพลตฟอร์มเครื่องย่อย 8 หลุมสองโซนและเครื่องวัดสีแบบโฟโตเมตริก วัด CODcr ได้ 0.7–40 มก./ล. ซึ่งเป็นช่วงการทำงานสำหรับตัวอย่างน้ำสะอาด เช่น น้ำดื่ม น้ำผิวดิน และน้ำบาดาล
โปรแกรมในตัวย่อยตัวอย่าง CODcr (2 ชม.), CODcr (เร็ว), CODMn, ฟอสฟอรัสรวม และไนโตรเจนรวม เครื่องหมายน้ำยาสำเร็จรูปสำหรับฟอสฟอรัสรวมและไนโตรเจนรวมช่วยลดงานเตรียมด้วยมือ อิเล็กโทรดเสริมเพิ่ม pH, ORP, การนำไฟฟ้า, ออกซิเจนละลายน้ำ, ความขุ่น และของแข็งแขวนลอยบนแพลตฟอร์มเดียวกัน หน้าจอสัมผัส 7 นิ้ว เครื่องพิมพ์ในตัว และการส่งออก Type-C ทำให้กระบวนการครบถ้วน
MP5300 ต่างจากเครื่องวิเคราะห์ COD ทั่วไปอย่างไร?
ช่องวัดสีถูกปรับเทียบสำหรับ CODcr 0.7–40 มก./ล. จึงวัดตัวอย่างน้ำสะอาดได้โดยตรง ไม่ต้องเจือจางเพื่อให้เข้ากับวิธีช่วงสูง
ยังย่อยฟอสฟอรัสรวมและไนโตรเจนรวมได้หรือไม่?
ได้ โปรแกรมในตัวครอบคลุม CODcr (2 ชม.), CODcr (เร็ว), CODMn, ฟอสฟอรัสรวม และไนโตรเจนรวม ส่วนเครื่องหมายน้ำยาสำเร็จรูปช่วยลดงานเตรียมน้ำยา
ติดตั้งอิเล็กโทรด pH การนำไฟฟ้า หรือออกซิเจนละลายน้ำได้ไหม?
ได้ อิเล็กโทรด pH/ORP การนำไฟฟ้า ออกซิเจนละลายน้ำ ความขุ่น และของแข็งแขวนลอยเชื่อมต่อกับเครื่องเดียวกันข้างช่องวัดเชิงแสง
MP5300 เหมาะกับขั้นตอนใดที่สุดในงานจ่ายน้ำ?
ในโปรแกรมน้ำดื่ม น้ำผิวดิน และน้ำบาดาล การตรวจ COD ประจำถูกย่อย วัด พิมพ์ และส่งออกบนเครื่องพกพาเครื่องเดียว โดยไม่ต้องส่งตัวอย่างออกไป
MP5300 ialah penganalisis kualiti air pelbagai parameter yang dikhususkan untuk COD julat rendah. Dibina di atas platform pencerna 8 lubang dua zon dan fotometer kolorimetri, ia mengukur CODcr daripada 0.7 hingga 40 mg/L, julat kerja untuk sampel air bersih termasuk air minuman, air permukaan dan air bawah tanah.
Program terbina dalam mencerna sampel CODcr (2 jam), CODcr (cepat), CODMn, fosforus jumlah dan nitrogen jumlah; penanda reagen siap pakai untuk fosforus jumlah dan nitrogen jumlah mengurangkan penyediaan manual. Elektrod pilihan menambah pH, ORP, konduktiviti, oksigen terlarut, kekeruhan dan pepejal terampai pada platform yang sama; skrin sentuh 7 inci, pencetak terbina dalam dan eksport Type-C melengkapkan aliran kerja.
Apakah bezanya MP5300 dengan penganalisis COD standard?
Saluran kolorimetrinya ditentukur untuk CODcr 0.7–40 mg/L, jadi sampel air bersih diukur terus tanpa pencairan untuk memadankan kaedah julat tinggi.
Masih bolehkah ia mencerna fosforus jumlah dan nitrogen jumlah?
Boleh. Program terbina dalam merangkumi CODcr (2 jam), CODcr (cepat), CODMn, fosforus jumlah dan nitrogen jumlah; penanda reagen siap pakai mengurangkan penyediaan reagen.
Bolehkah elektrod pH, konduktiviti atau oksigen terlarut dipasang?
Boleh. Elektrod pH/ORP, konduktiviti, oksigen terlarut, kekeruhan dan pepejal terampai bersambung ke instrumen yang sama di sebelah saluran fotometri.
Di manakah MP5300 paling sesuai dalam aliran kerja bekalan air?
Dalam program air minuman, air permukaan dan air bawah tanah, pemeriksaan COD rutin dicerna, diukur, dicetak dan dieksport pada satu instrumen mudah alih tanpa menghantar sampel keluar.
Ang MP5300 ay isang multi-parameter water quality analyzer na dalubhasa sa low-range COD. Itinayo sa dual-zone 8-well digester at colorimetric photometer platform, sinusukat nito ang CODcr mula 0.7 hanggang 40 mg/L, ang working range para sa malinis na tubig kabilang ang inuming tubig, tubig pang-ibabaw at tubig sa lupa.
Idinidi-digest ng built-in programs ang CODcr (2 h), CODcr (fast), CODMn, total phosphorus at total nitrogen; ang pre-made reagent markers para sa total phosphorus at total nitrogen ay nakababawas ng manual preparation. Ang opsyonal na electrodes ay nagdaragdag ng pH, ORP, conductivity, dissolved oxygen, turbidity at suspended solids sa parehong platform; kumpleto ang workflow sa 7-inch touchscreen, built-in printer at Type-C export.
Ano ang pinagkaiba ng MP5300 sa standard COD analyzer?
Ang colorimetric channel nito ay naka-calibrate para sa CODcr 0.7–40 mg/L, kaya direktang sinusukat ang malinis na tubig nang hindi kailangang i-dilute para bagayan ang high-range method.
Nakakapag-digest pa ba ito ng total phosphorus at total nitrogen?
Oo. Sinasaklaw ng built-in programs ang CODcr (2 h), CODcr (fast), CODMn, total phosphorus at total nitrogen; nakababawas ng reagent preparation ang pre-made reagent markers.
Maaari bang ikabit ang pH, conductivity o dissolved oxygen electrodes?
Oo. Kumokonekta ang pH/ORP, conductivity, dissolved oxygen, turbidity at suspended-solids electrodes sa parehong instrumento katabi ng photometric channels.
Saan pinaka-angkop ang MP5300 sa water-supply workflow?
Sa mga programang inuming tubig, tubig pang-ibabaw at tubig sa lupa, ang routine COD checks ay dini-digest, sinusukat, piniprint at inie-export sa iisang portable instrumento nang hindi nagpapadala ng samples.
